MOD 1 V2 - TRS, XLR, IEC & DC Patchbay
The Control Center !
The MOD 1 V2 Patchbay is the easiest solution to consolidate ALL connections of a pedalboard in ONE central access point. The setup for any gig is done in seconds!
With its innovative pass-through design, the MOD 1 V2 was specially developed for versatile musicians. You can use the MOD 1 V2 to position some of your pedals in the front end before the amp (distortion, compressor, etc.) and some in the effects loop (such as reverb, delay) (4 cable method). The XLR-Through connection can be used as a signal output from the pedalboard to a mixing console or PA, for example.
Compatible with almost all of our pedalboards with one or more MOD slots (not available on the compact DUO series), the All-In-One Patchbay allows you to organize all required cable connections in one efficient module. This way, you can keep all pedals permanently and neatly wired underneath the board and organize all connections to and from your effects setup in one convenient spot.
The removable front panel makes it possible to use this ingenious module with pedalboards from other manufacturers, e.g. using our 'Mounting Rack'.

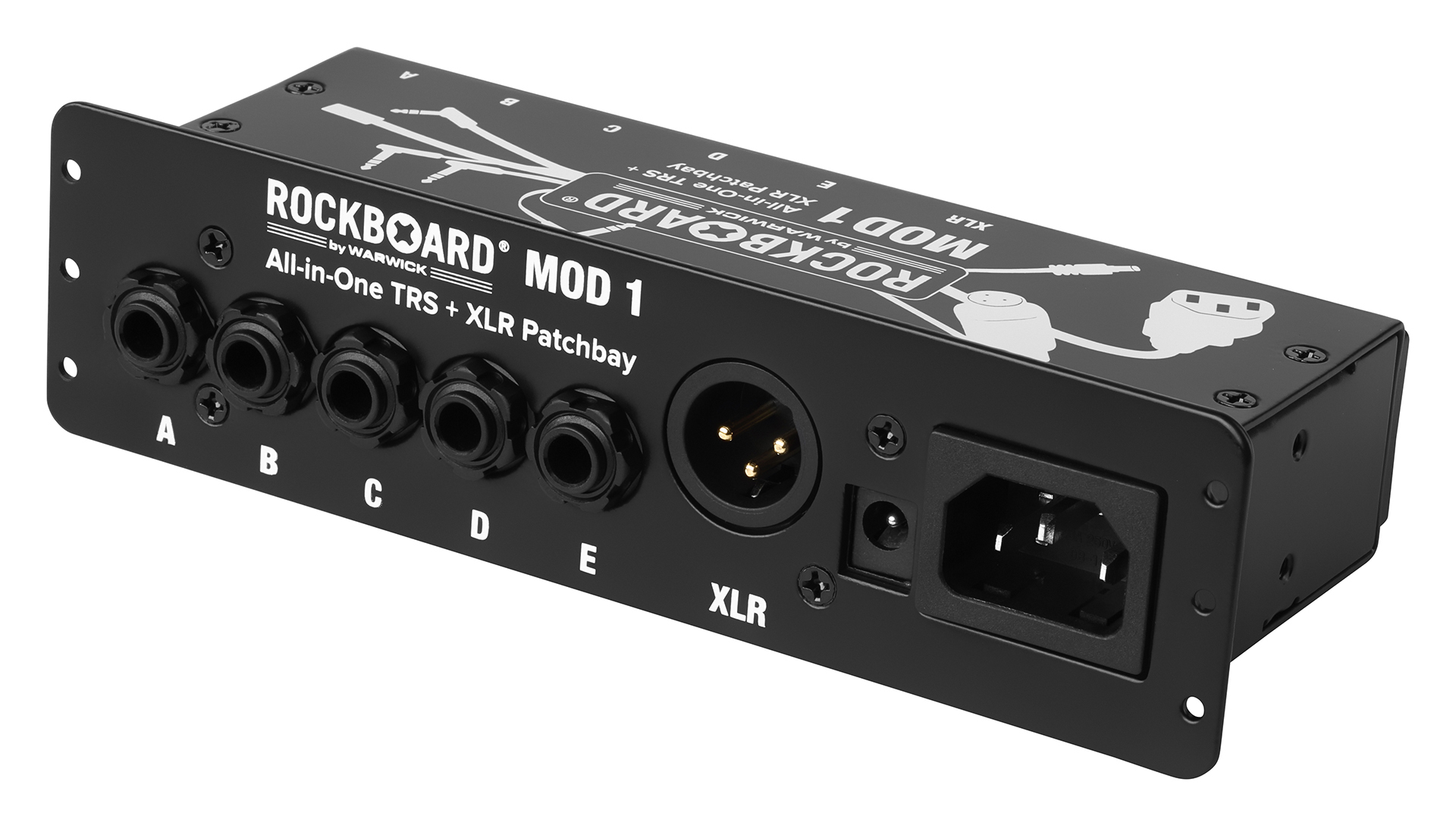

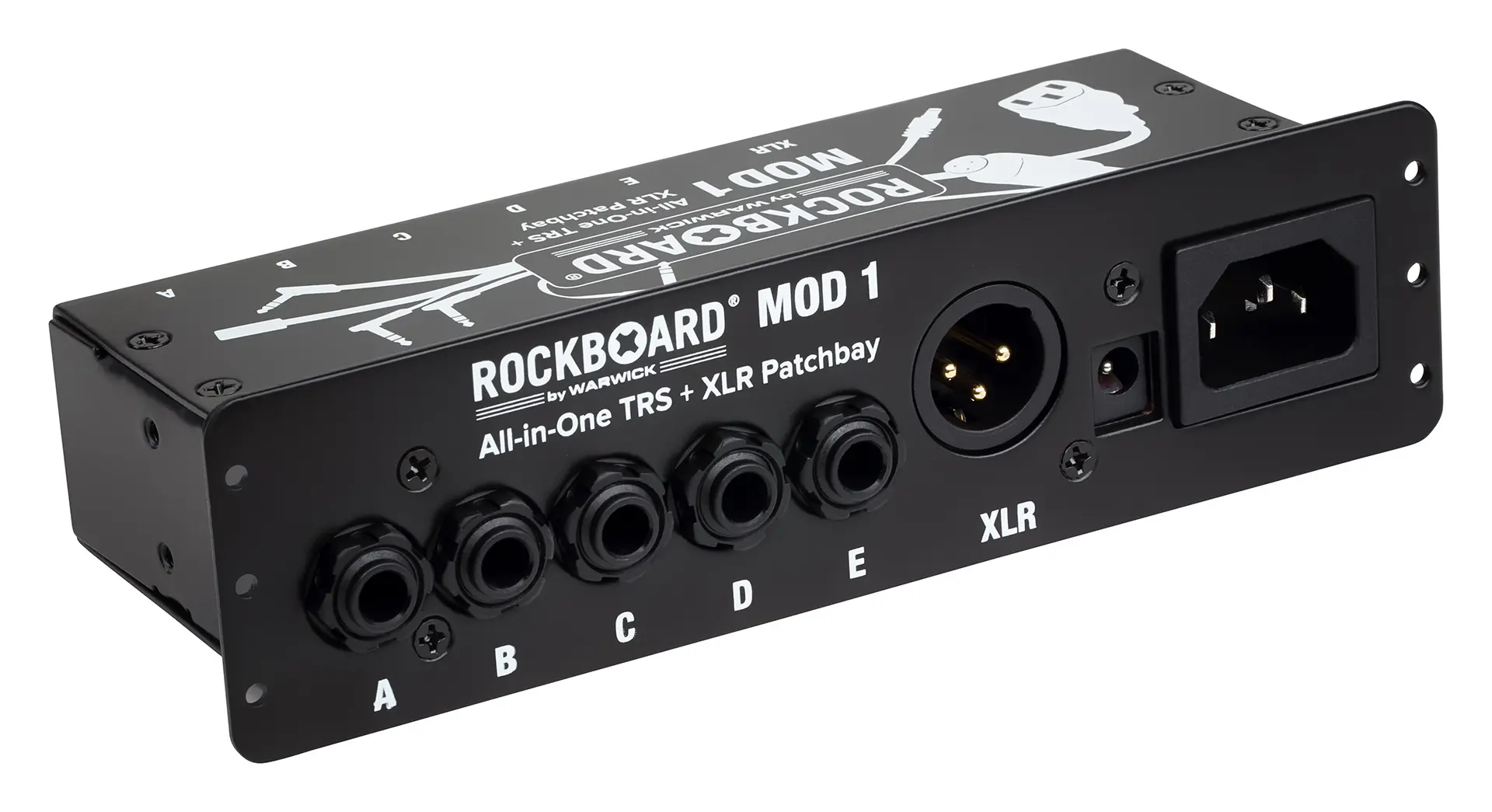

- RockBoard MOD 1 V2 - All-in-One TRS & XLR, IEC & Barrel Patchbay
Details at a glance
- all-in-one patchbay for pedalboards
- fits MOD slots in RockBoard pedalboards
- compatible with a wide variety of other pedalboards
- acts as central access point to your effects setup
- establishes clean cable paths to and from the pedal board

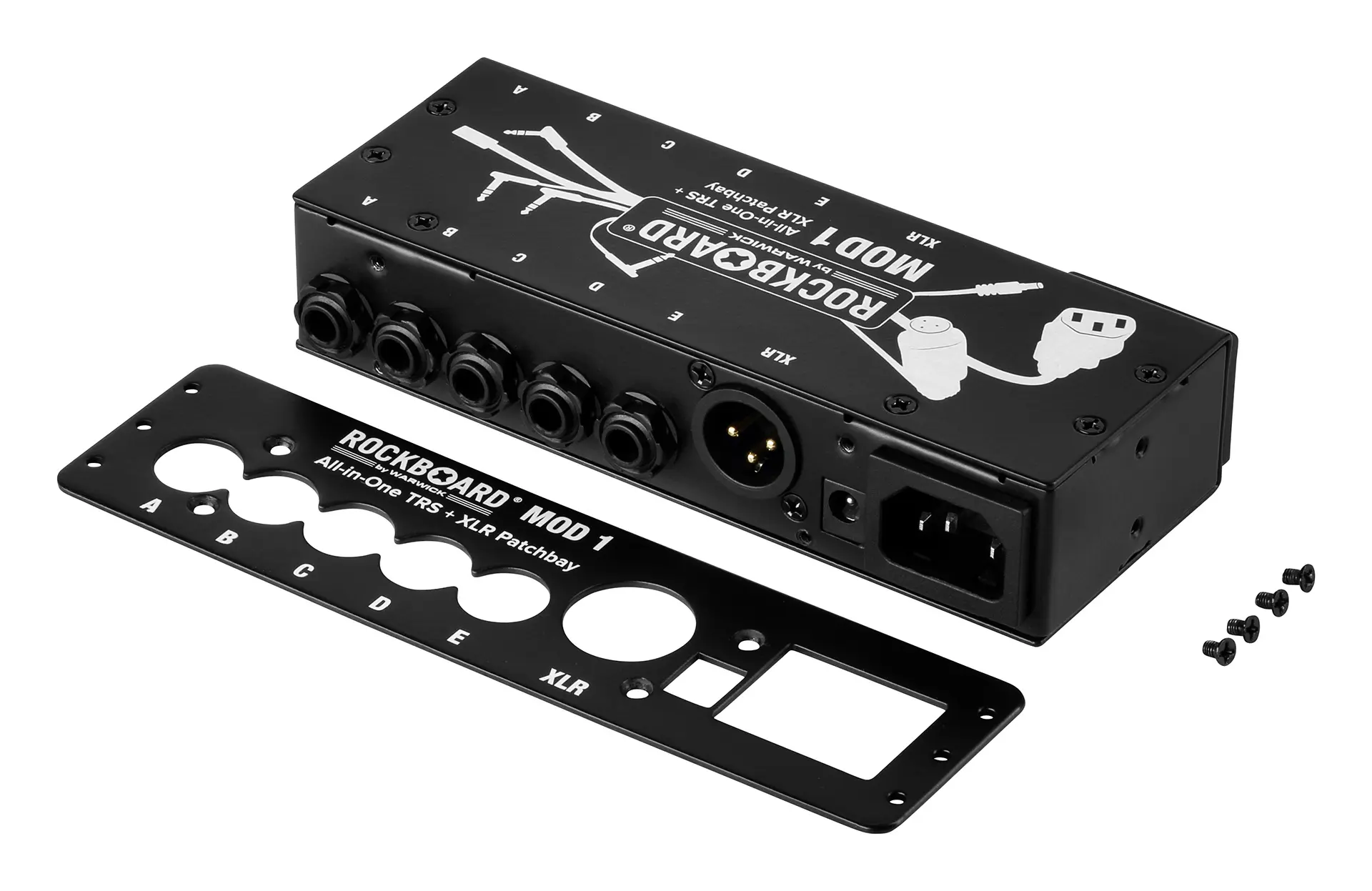

- detachable front plate for mounting on top or underneath pedalboards

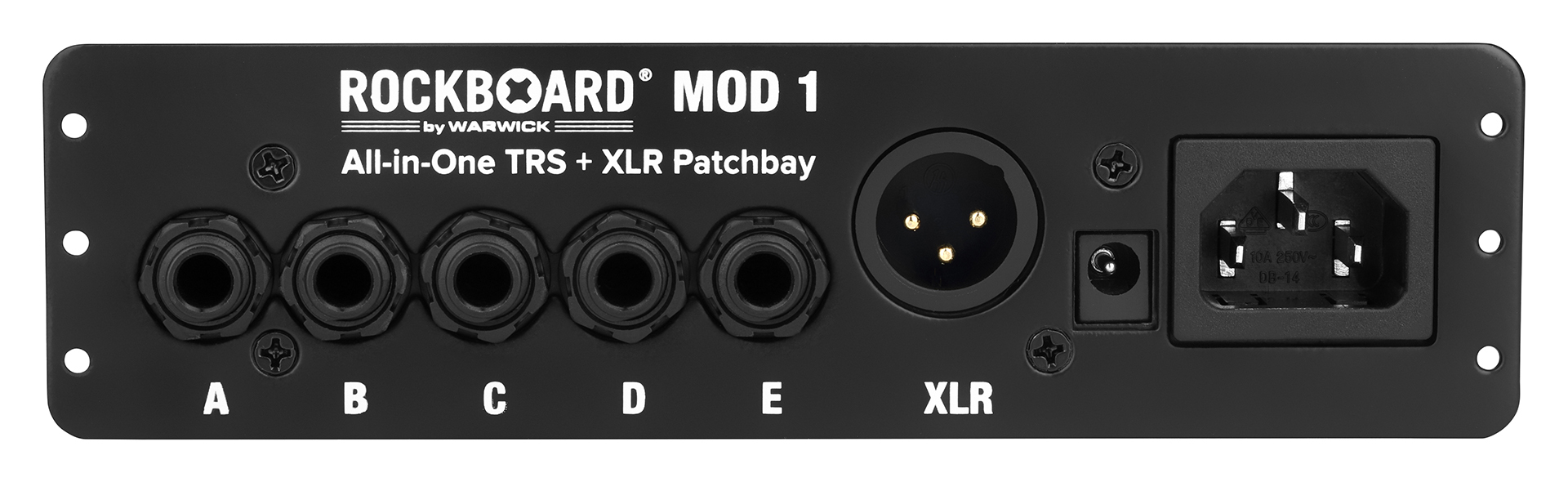

- 5 x 6,3 mm / ¼" TRS thru
- 1 x XLR thru (male front / female back)
- 1 x DC 2,1 x 5,5 mm barrel thru
- 1 x AC IEC thru (male front / female back)

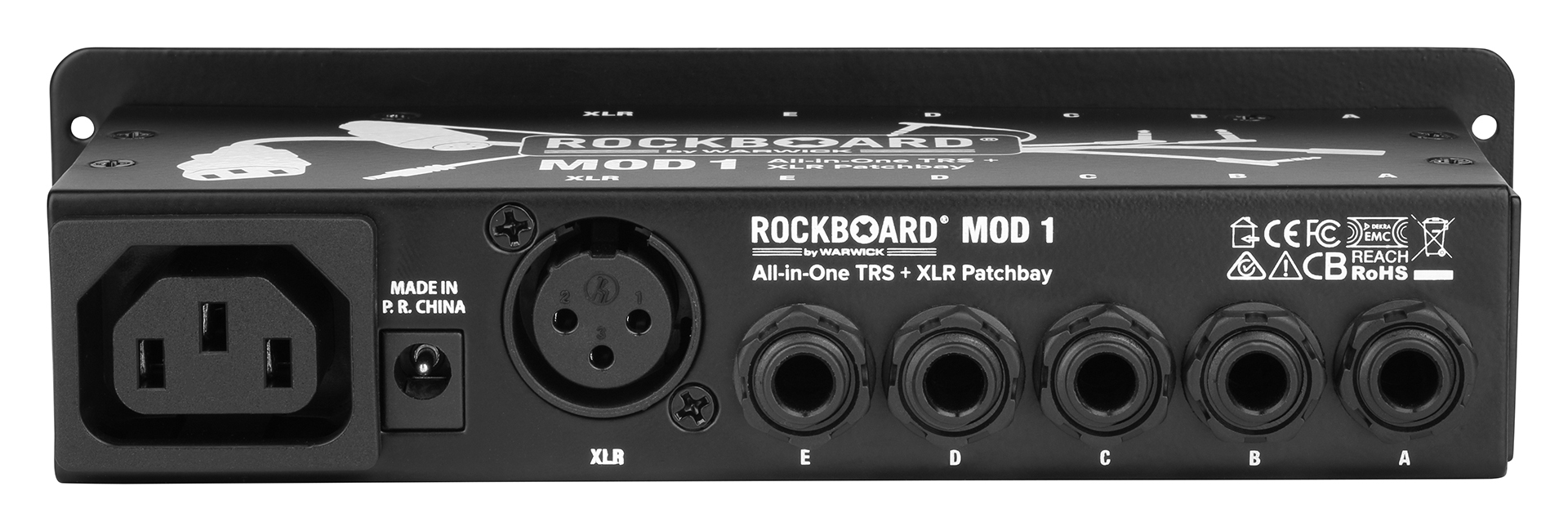

- all connections mirrored on backside
- dimensions excl. front plate (W x D x H): 160 x 60 x 33 mm / 6 19/64" x 2 23/64" x 1 19/64"
- dimensions of the front plate (W x H): 175 x 48 mm / 6 57/64" x 1 57/64"
- weight 450 g / 0.99 lbs
- incl. mounting screws, counter nuts and TX wrench
