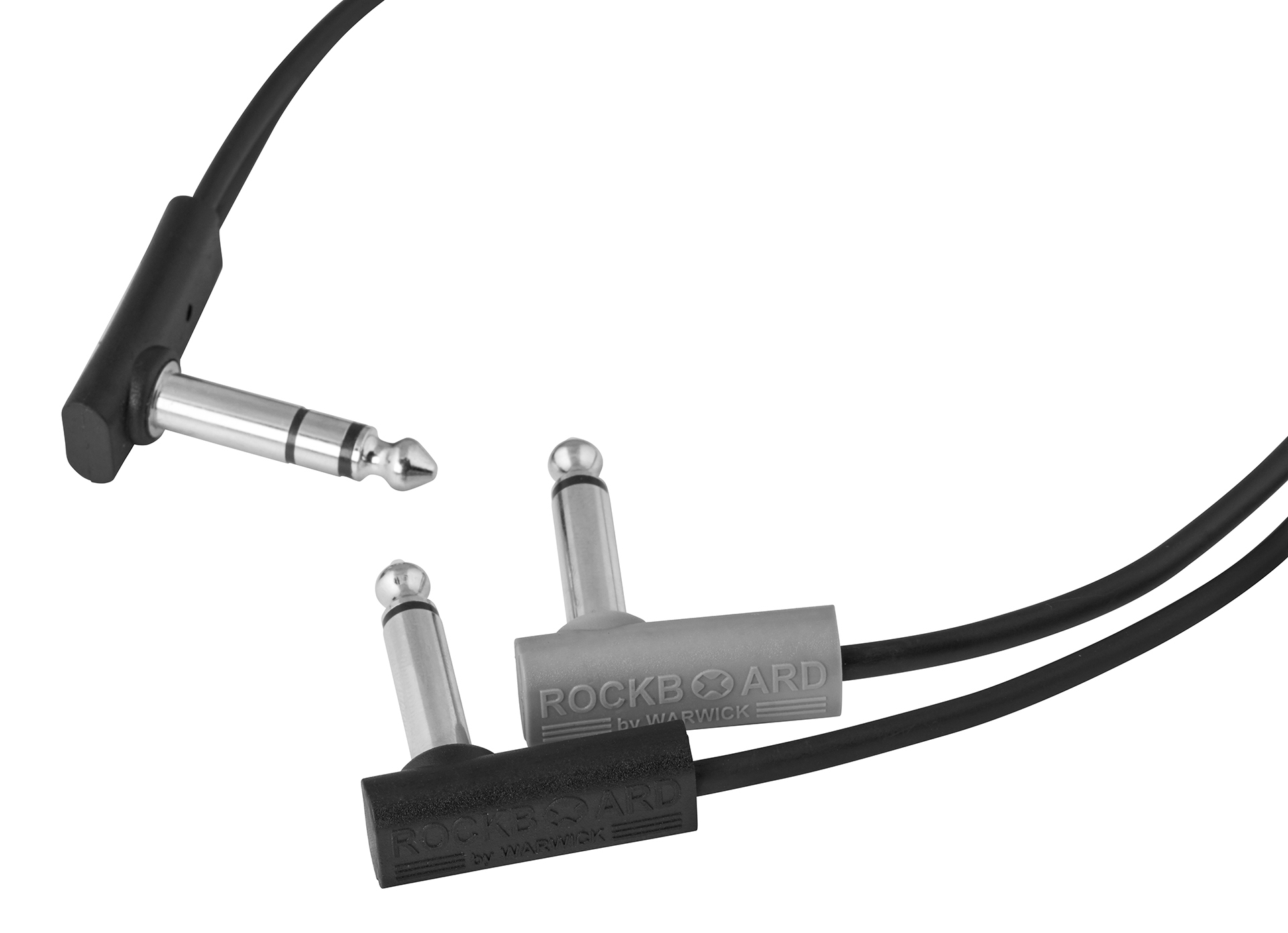

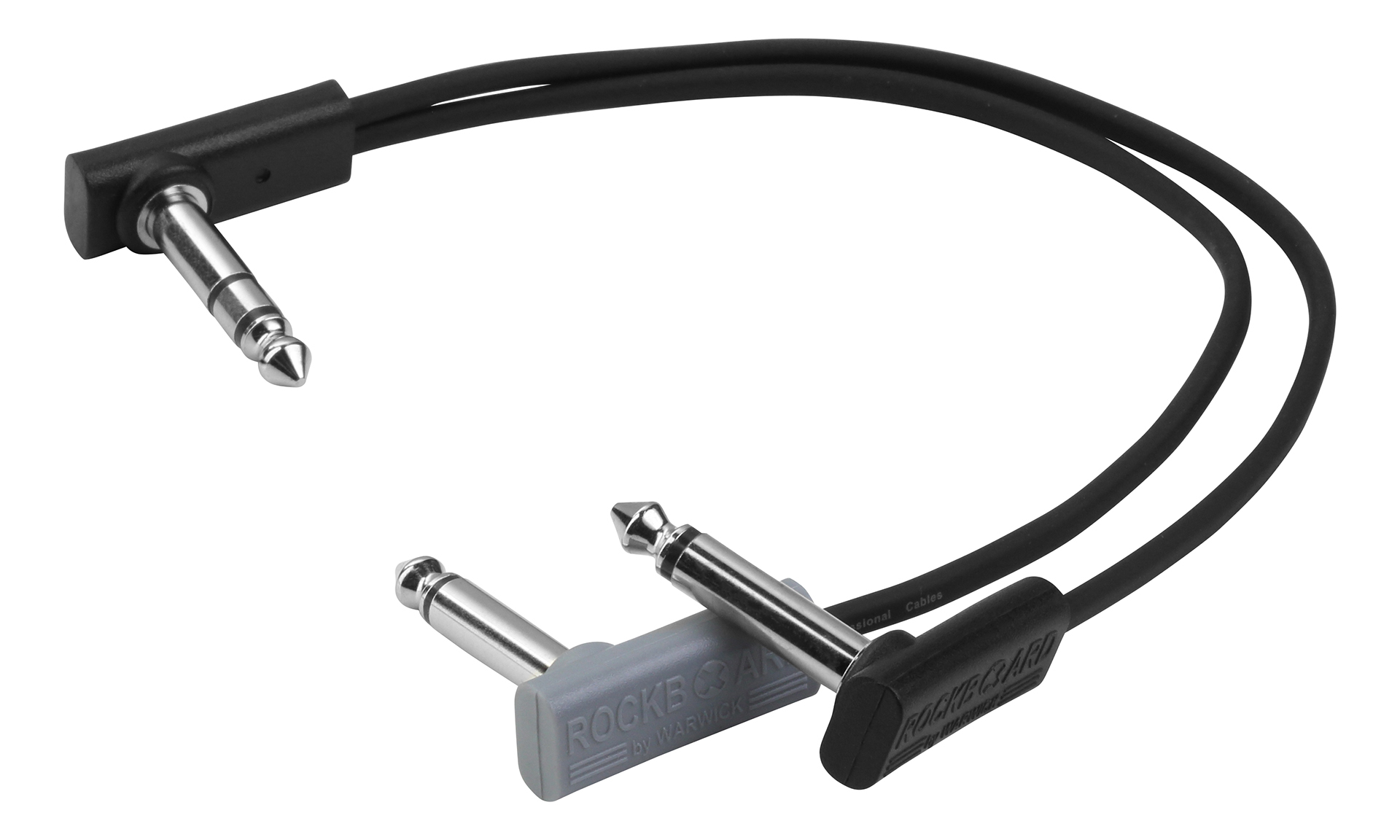

The RockBoard Flat Y-Splitter cable is extra flat and space-saving. Designed to optimize pedalboard real estate, it features a slim rectangular body and very thin angled plugs. It keeps the setup tidy and neat looking and guarantees a short, clean signal path and pristine signal quality.

Using the RockBoard Flat Y-Splitter Cable ensures a perfect match to a TRS effects loop on an amp or pedal or constructive stereo operations.

Choose a length

7.87in

11.81in

19.69in

Article No.: RBO CAB F Y 20 BK

$8.50

View in shop

Details at a glance

flat Y-splitter cable
splitting TRS stereo signals into TS mono signals or as insert cable for TRS effects loops
compact and super flat angled plugs
flexible copper conductor 20 x 0.12 mm
twisted copper shielding 34 x 0.12 mm
PE (polyethylene) signal insulation
outer PVC insulation
capacity of less than 10 pF/decimeters
conductor resistance of less than 10 mOhm/decimeters
1 x angled 6.3 mm TRS audio plug
2 x angled 6.3 mm TS audio plugs (gray = tip / black = ring)
operating temperature: -15° C to +70° C (5° F to 158° F)
outer dimensions cable (W x H): 7 x 3 mm (9/32” x 1/8”)
outer dimensions plugs (W x H): 12.5 x 7.5 mm (31/64” x 19/64”)
length 20 cm / 7 7/8"
black
