Standard Series Looper/Switcher TRS Connector
Flat and space-saving

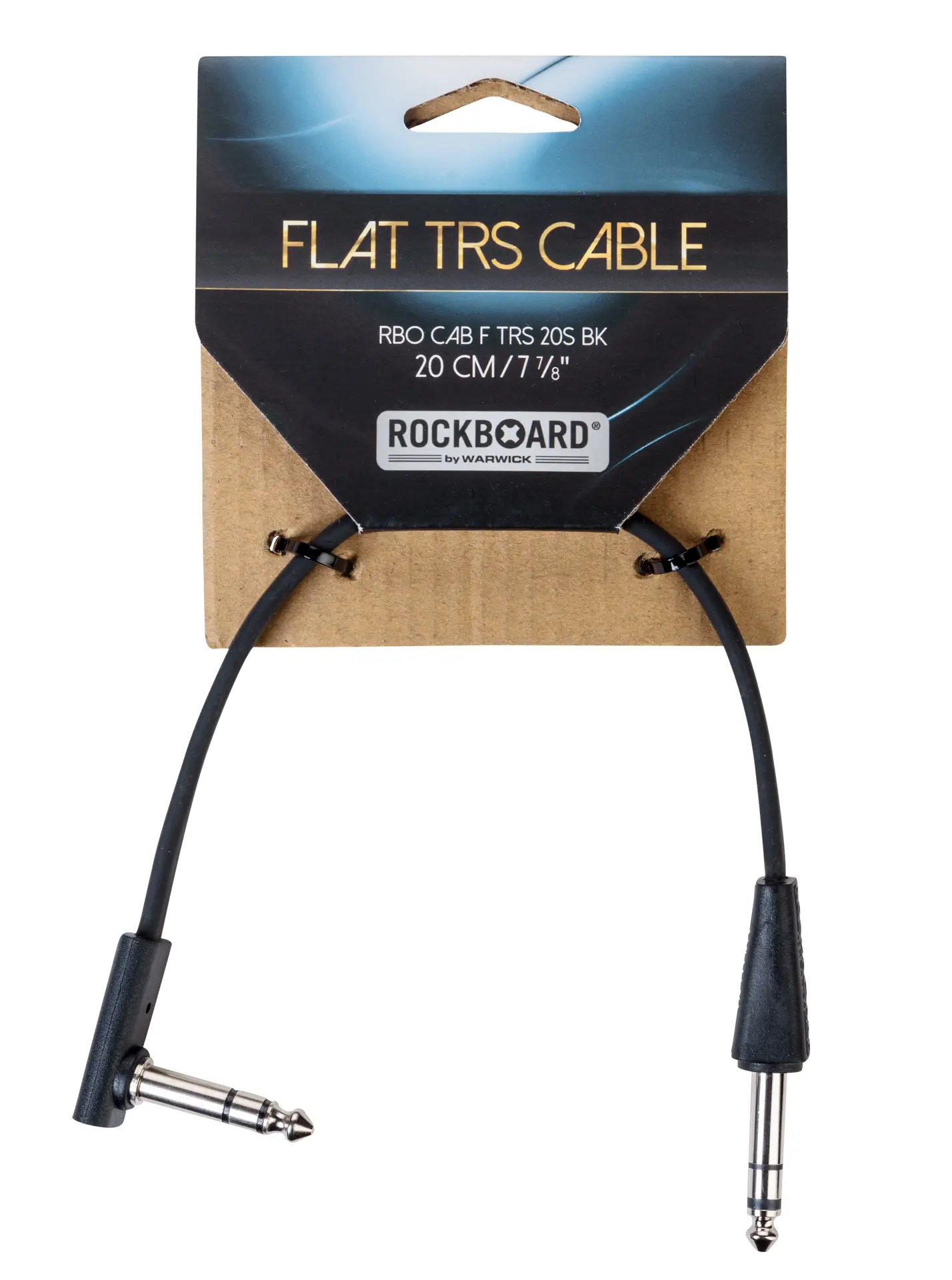

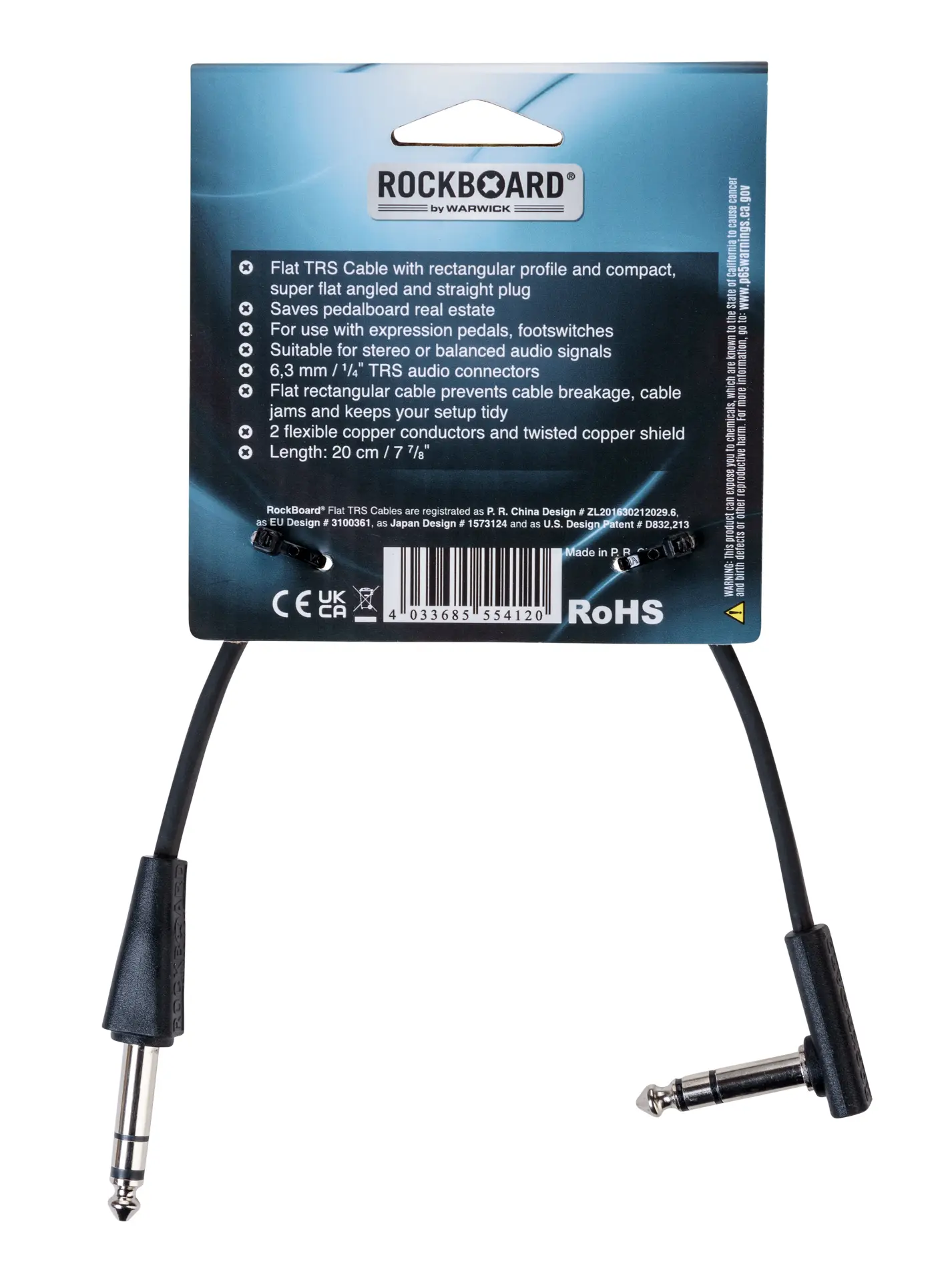

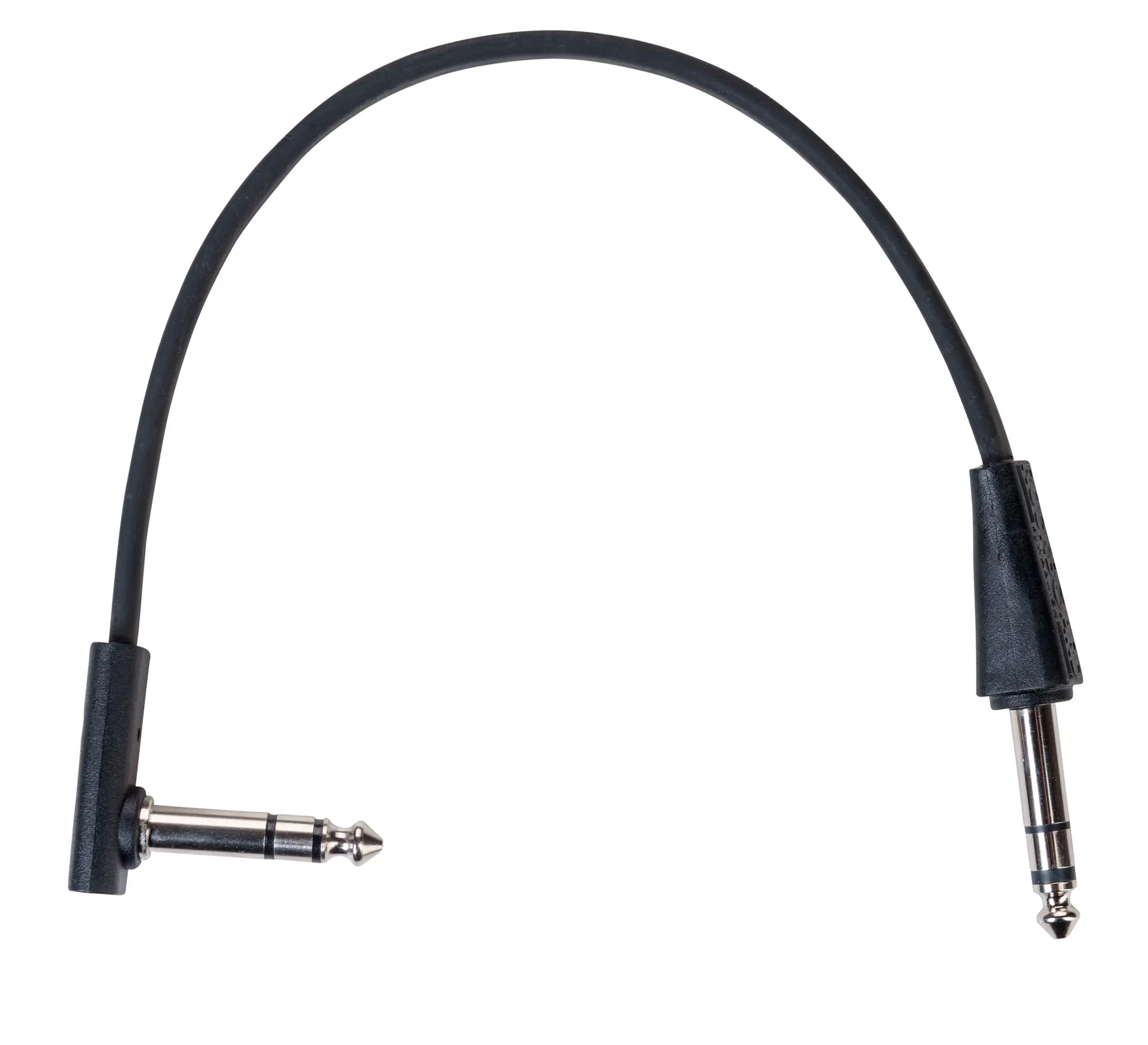

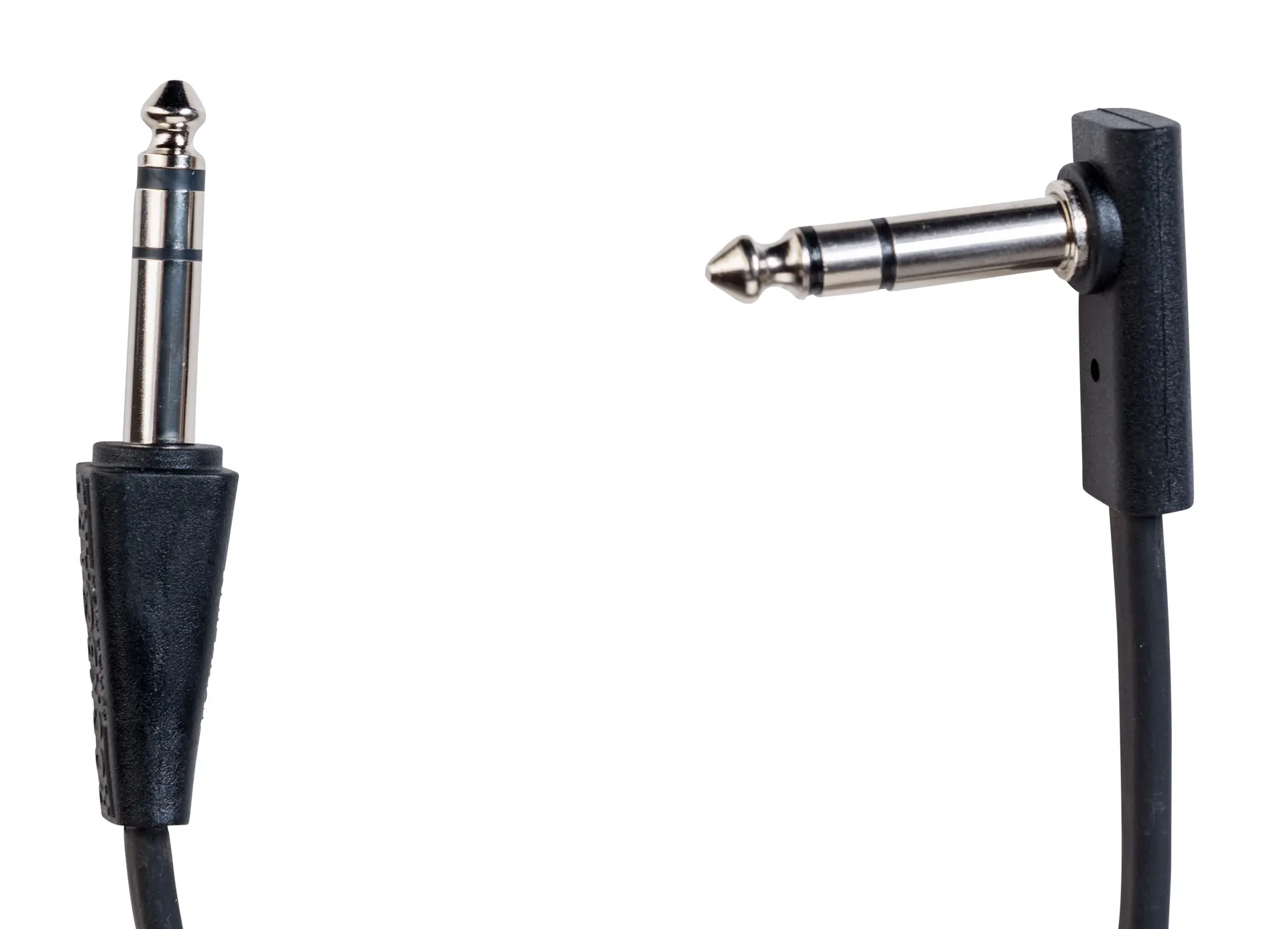

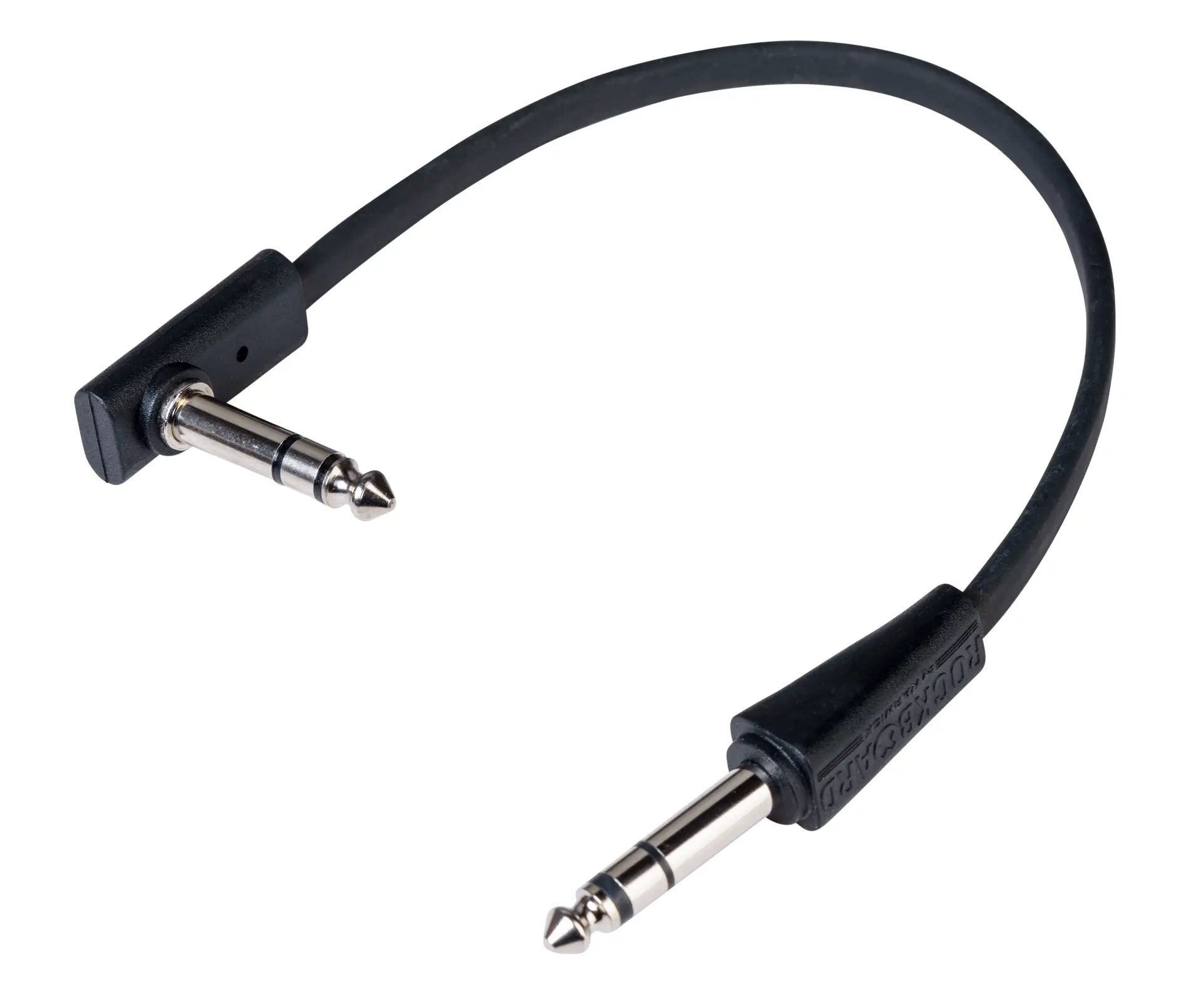

The new RockBoard TRS patch cables were designed to be extra flat and space-saving to make the most of the available space on your pedalboard. They come with slim, angled jack plugs and the flat conductor cables effectively prevent twisting. This ensures accurate and clean wiring on the board. This version has a straight plug on one side to ensure perfect fit even in tight applications.
Details at a glance
- flat TRS cable with a rectangular profile
- for connecting foot controllers and expression pedals
- compact and super flat angled plugs
- flexible copper conductor 20 x 0.12 mm
- twisted copper shielding 34 x 0.12 mm
- PE (polyethylene) signal insulation
- outer PVC insulation
- capacity less than 10 pF/decimeter
- conductor resistance less than 10 mOhm/decimeter
- angled 6.3 mm TRS audio plugs
- operating temperature: -15° C to +70° C (5° F to 158° F)
- outer dimensions cable (W x H): 7 x 3 mm (9/32” x 1/8”)
- outer dimensions plugs (W x H): 12.5 x 7.5 mm (31/64” x 19/64”)
- length 20 cm (7 7/8")
- black
