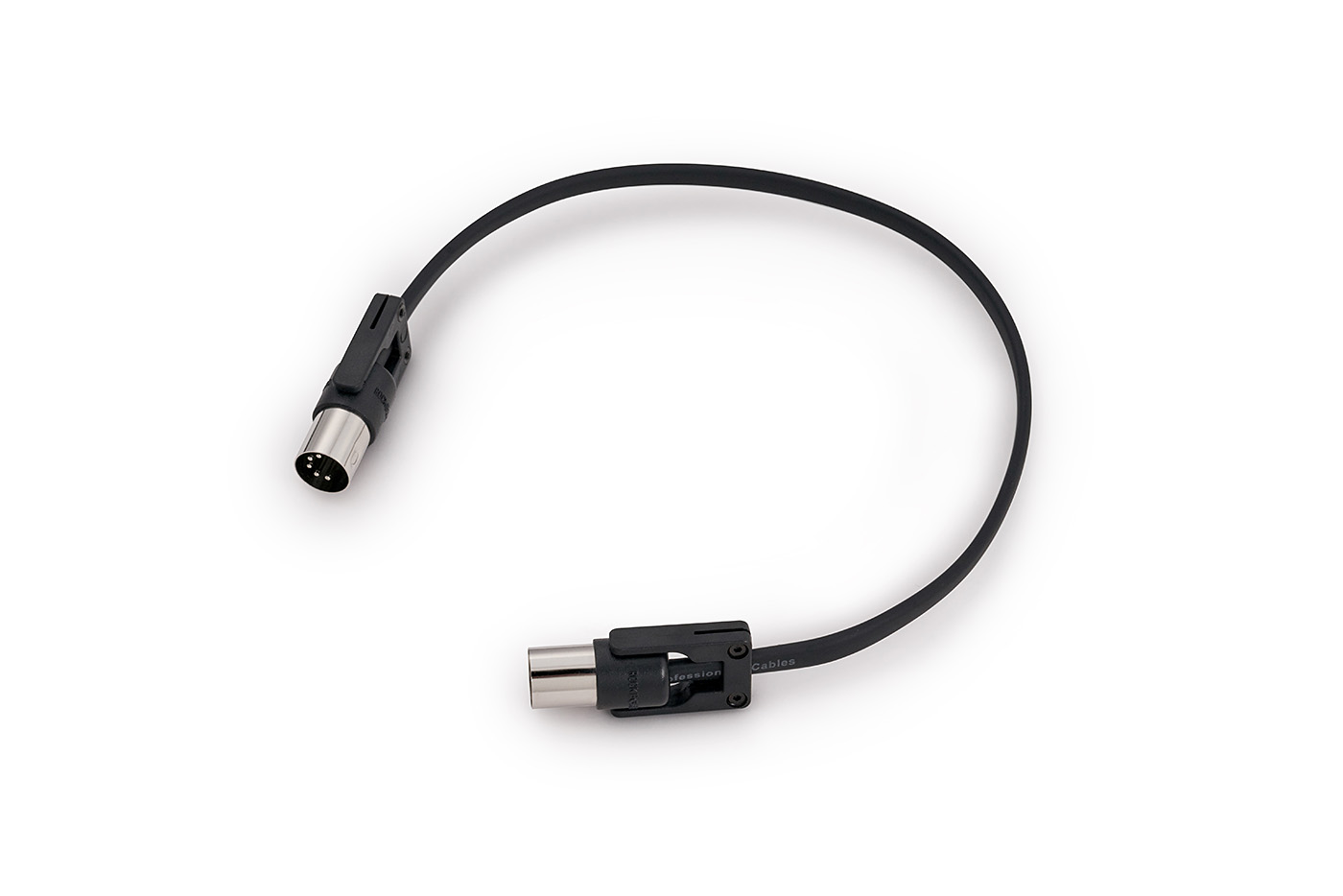

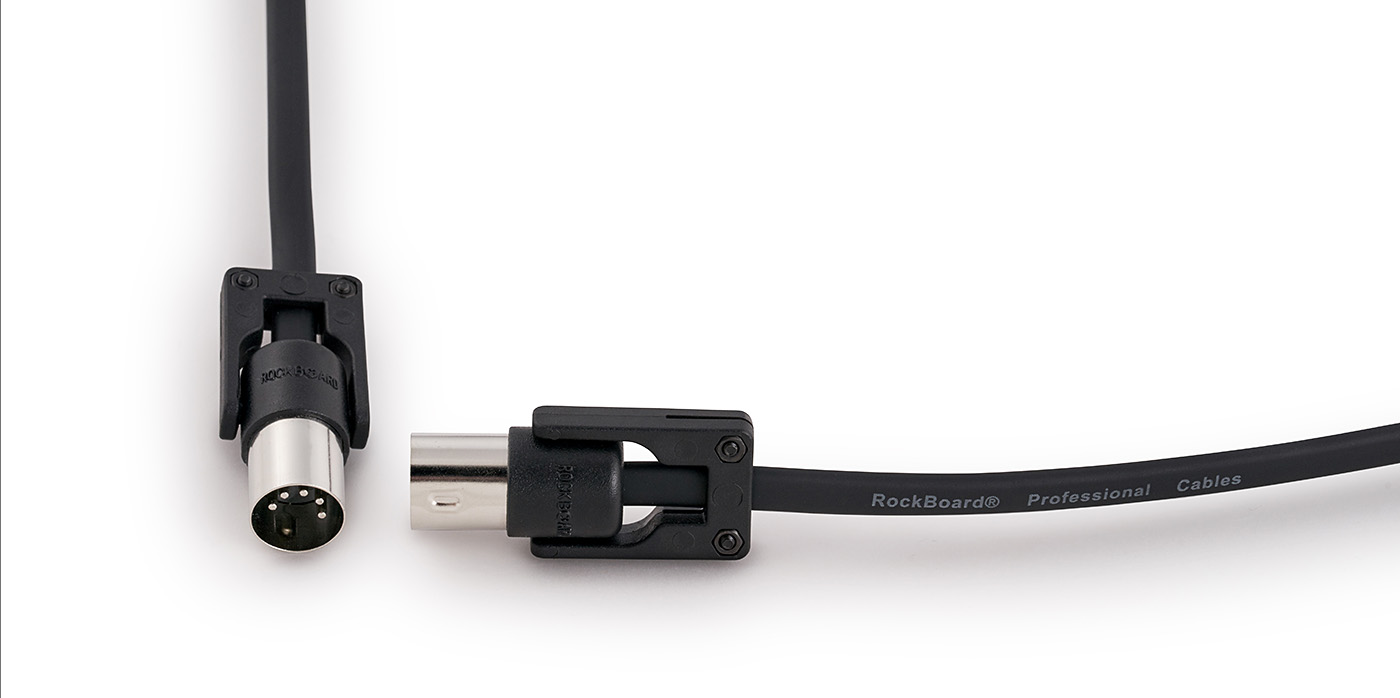

The RockBoard® FlaX Plug MIDI Cables, with their compact omni-directional design, allowing maximum freedom in adjusting the plug orientation are a logical follow-up on the RockBoard® Flat MIDI Cable design. Almost any angle is easily adjustable, with the plug securely fixed in place by two screws, regardless of the direction of the plugs: straight, angled and everything in between. This makes it very easy to adapt to various types of equipment. The flat, rectangular conductor cable effectively reduces twisting and prevents damage to the cable core. The 5-pin pinout makes the realization of almost any MIDI application possible.

Choose Variant

RockBoard FlaX Plug MIDI Cable - 30 cm / 11 13/16"
RockBoard FlaX Plug MIDI Cable - 60 cm / 23 5/8"
RockBoard FlaX Plug MIDI Cable - 100 cm / 39 3/8"
RockBoard FlaX Plug MIDI Cable - 200 cm / 78 47/64"
RockBoard FlaX Plug MIDI Cable - 500 cm / 196 27/32"

Article No.: RBO CAB MD FX 30 BK

$7.00

View in shop

Details at a glance

flat MIDI cable with omni-directional, lockable compact plugs

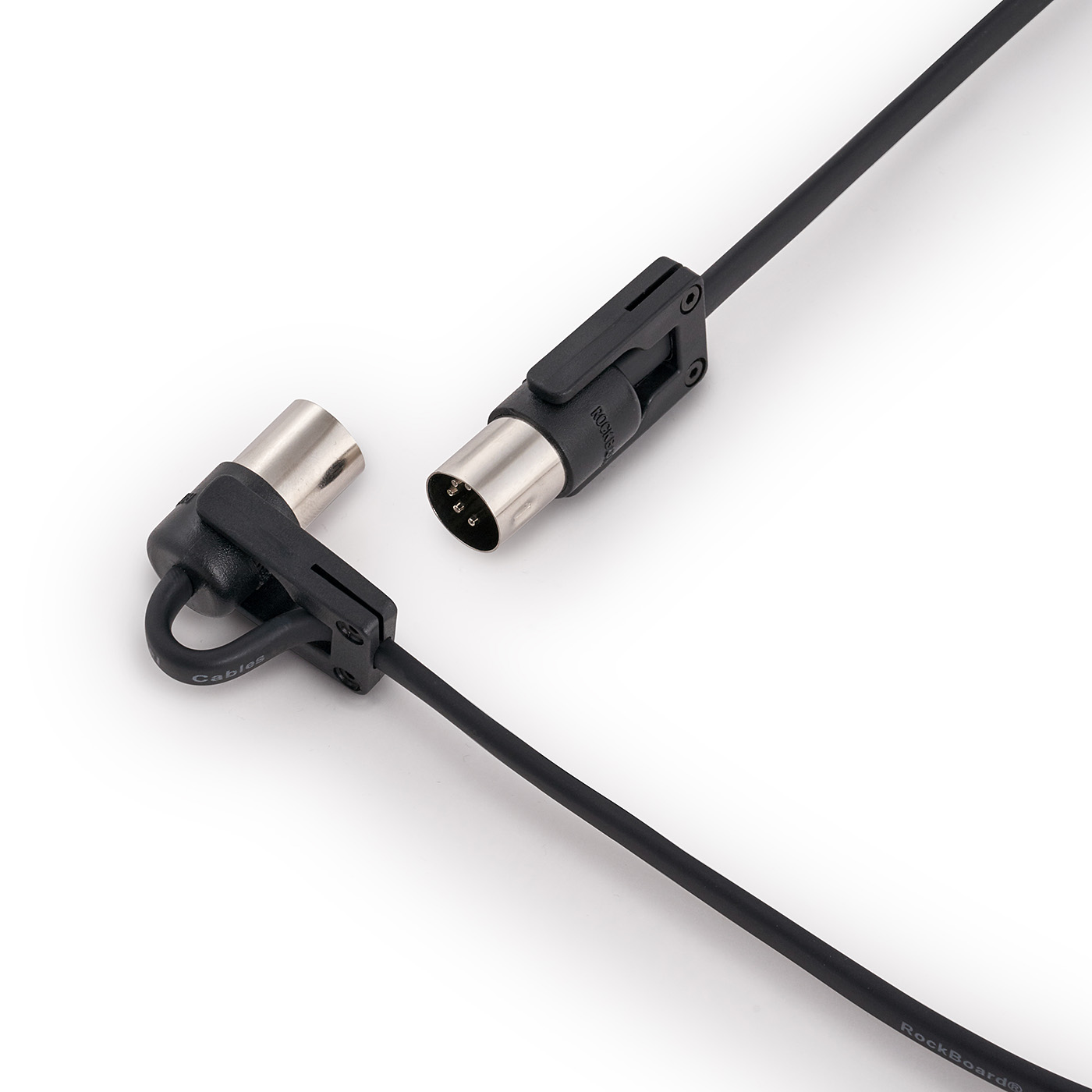

plug orientation alterable from straight to angled to the left or right
orientation lockable via 1.5 mm hex key wrench (not included)
flat rectangular cable, prevents cable breakage and cable jams
compact DIN 5-pin plugs
5 x flexible oxygen-free copper conductors 5 x 7 x 0.12 mm
suitable for Clock/SYNC Capabilities & Phantom Power
max. rated current 1A
outer insulation: PVC (Polyvinylchloride)
operating temperature: -20° C to +60° C (-4° F to 140° F)
dimensions plug (L x W x H): 33 x 20 x 15 mm (1 19/64" x 25/32" x 19/32")
dimensions cable (W x H): 6.5 x 3.5 mm (1/4” x 9/64”)
length 30 cm (11 13/16")
black
