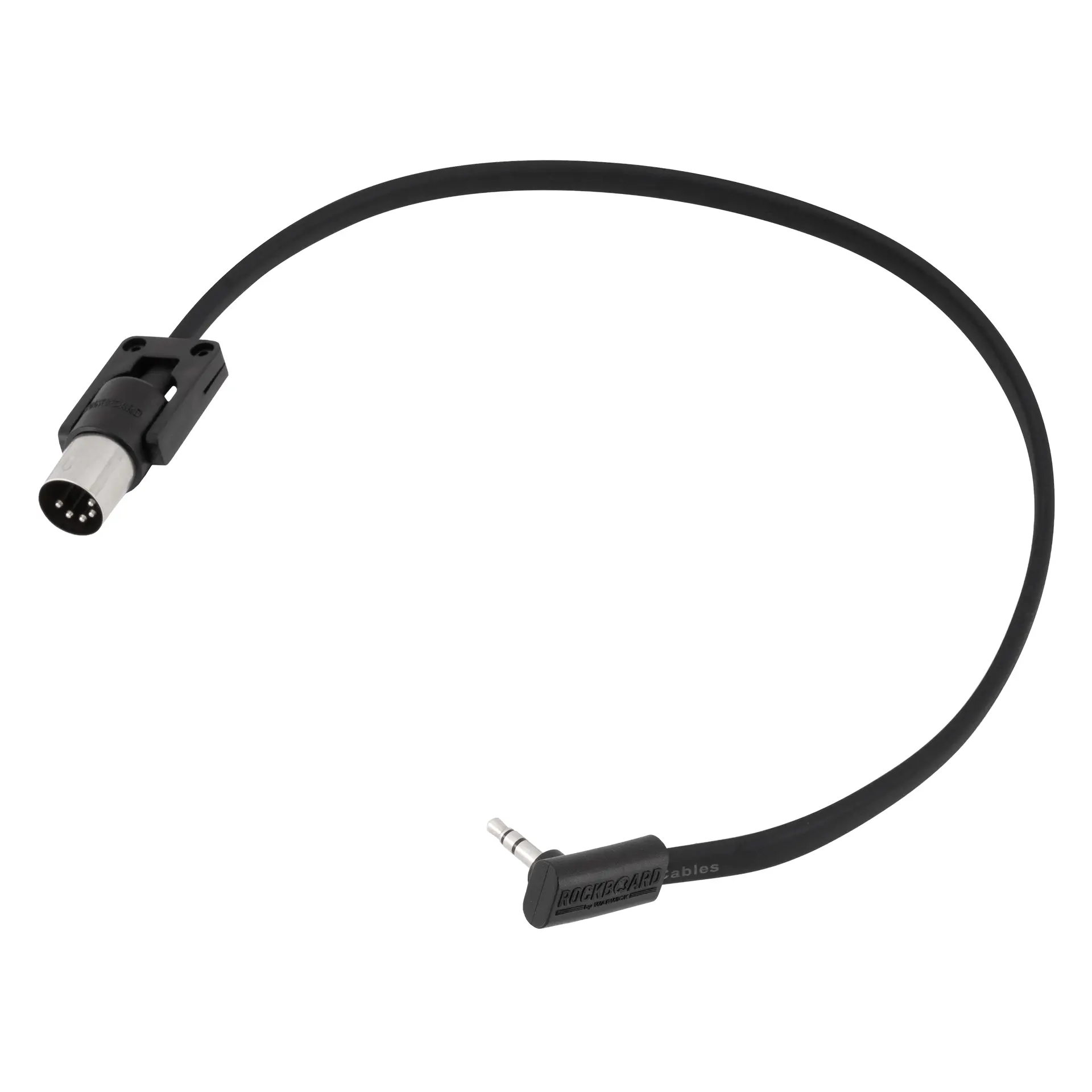

Flat Mini-TRS to MIDI Cable

The Flat TRS to FlaX-MIDI Cable is engineered for reliable performance, clean signal transmission, and efficient pedalboard organization. Based on the proven design of the patented Flat Patch Cables, this innovative cable combines durability with a compact form factor to meet the needs of modern MIDI applications, featuring ultra-flat connectors and space-saving installations. Available in three different lengths, it offers maximum flexibility helping maintaining a clean and organized signal path with minimal cable clutter.

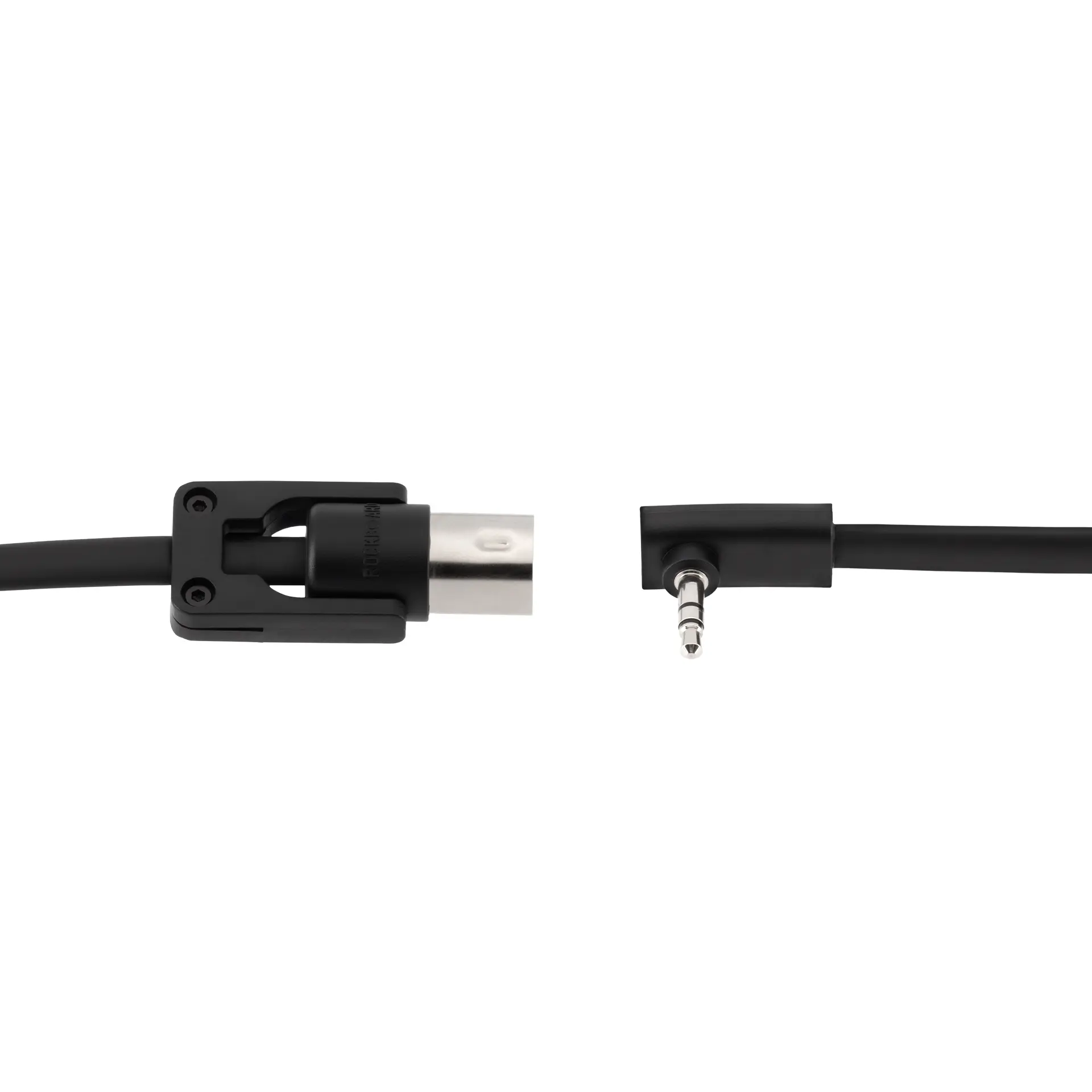

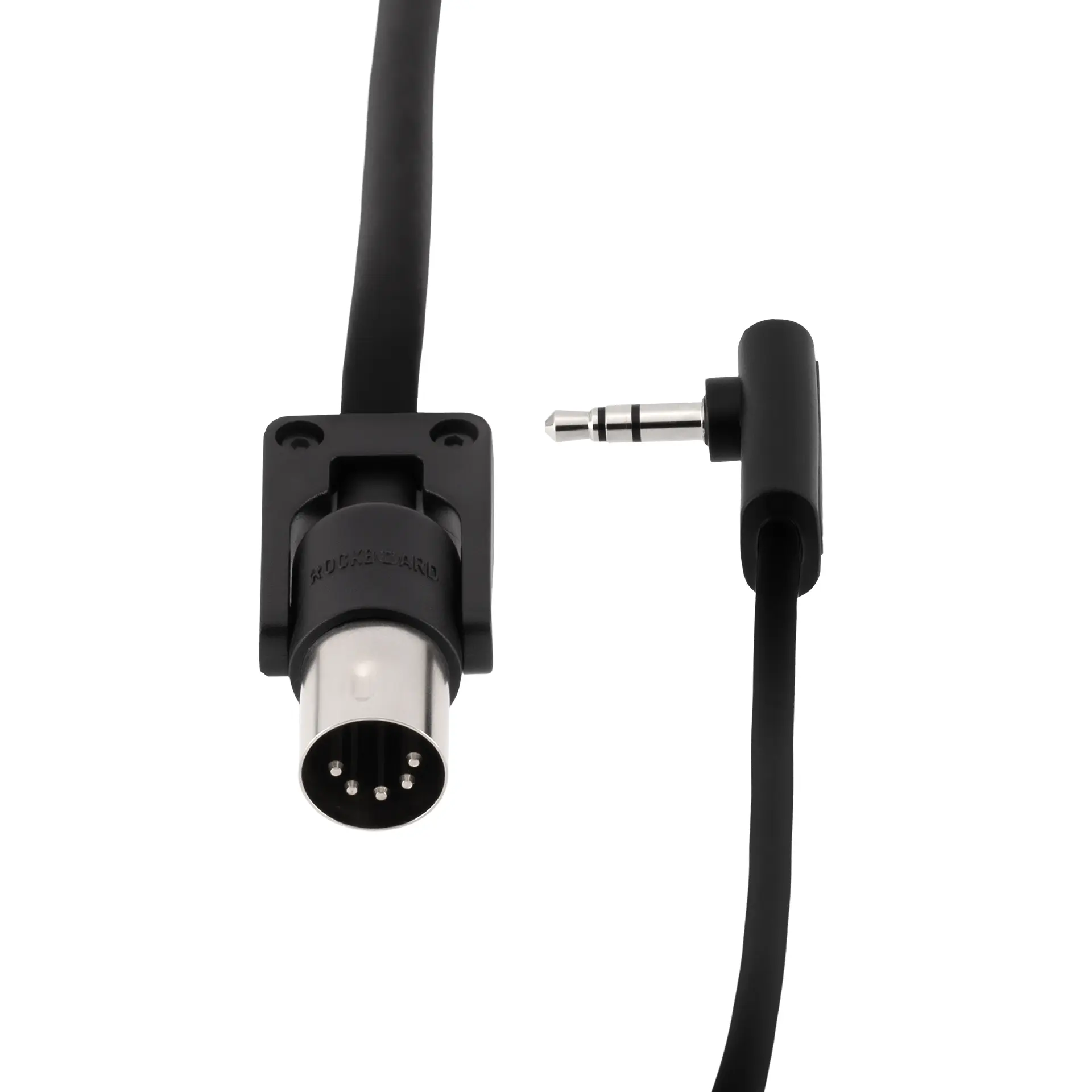

The FlaX Plug MIDI plug allow maximum freedom in setting the plug orientation, thanks to their compact omnidirectional construction. Almost every angle is easily adjustable. The direction of the connector is fixed by two screws securely. Everything is possible, straight, angled, and everything between; this makes it very easy to adapt to the corresponding equipment.

The specially designed flat, rectangular conductor significantly reduces twisting and mechanical stress, helping prevent internal damage and ensuring long-term reliability.

Technical Specifications:

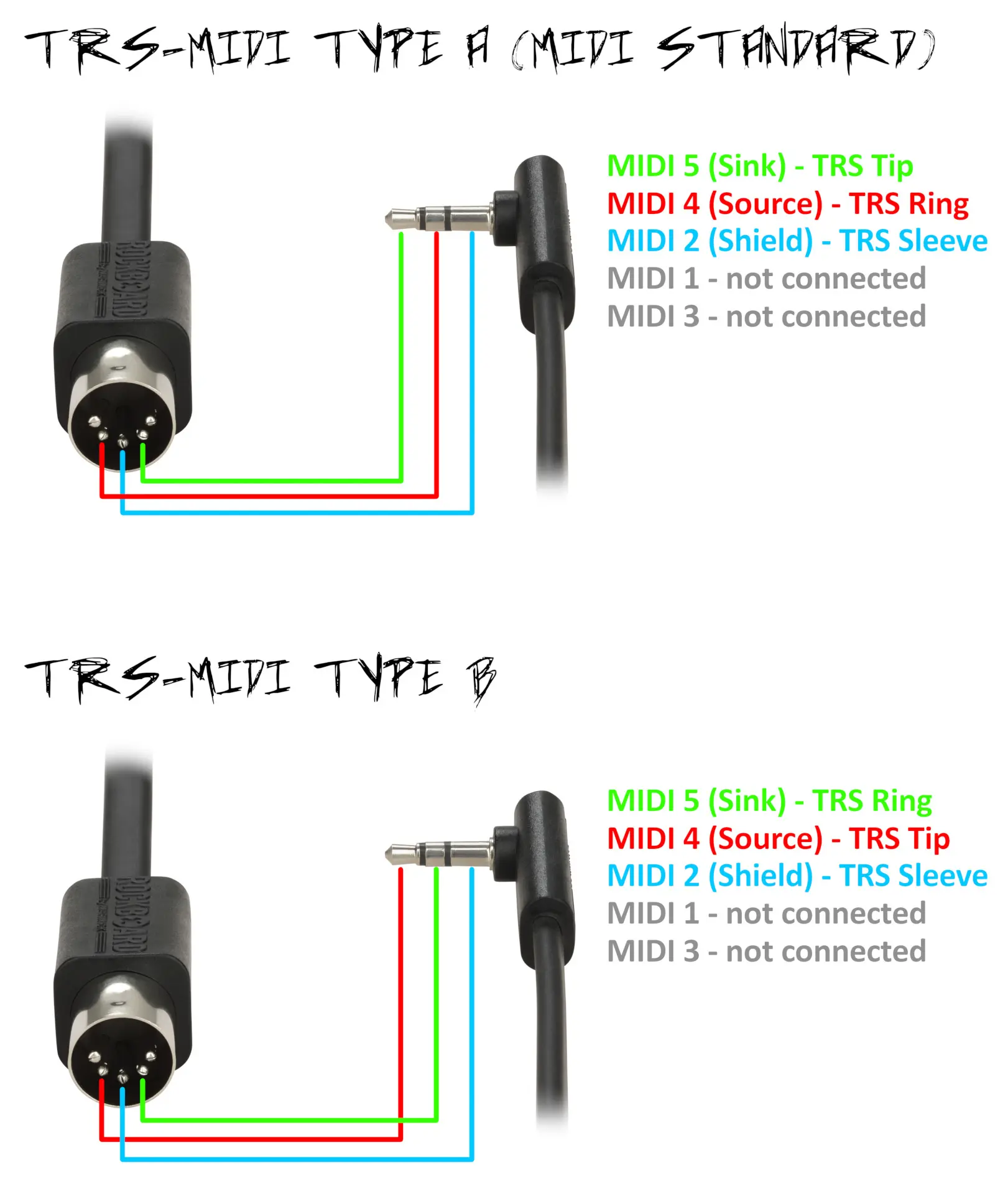

TRS-MIDI Type A (MIDI Standard): MIDI Pin 5 (Sink) → TRS Tip / MIDI Pin 4 (Source) → TRS Ring / MIDI Pin 2 (Shield) → TRS Sleeve / MIDI Pins 1 & 3 → Not connected

TRS-MIDI Type B: MIDI Pin 4 (Source) → TRS Tip / MIDI Pin 5 (Sink) → TRS Ring / MIDI Pin 2 (Shield) → TRS Sleeve / MIDI Pins 1 & 3 → Not connected
