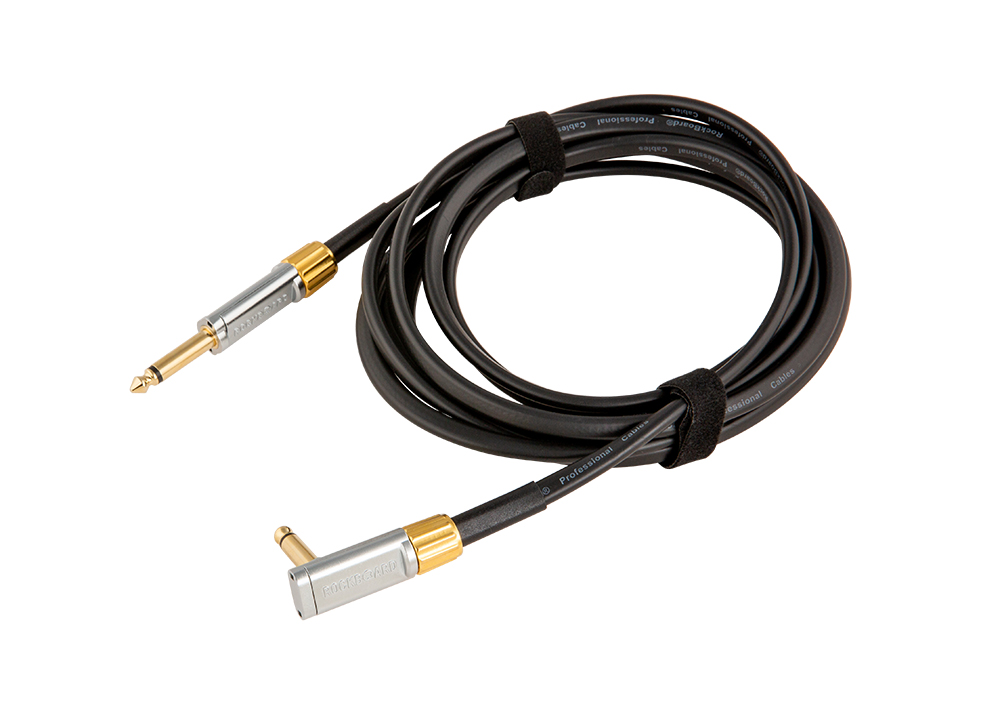

The RockBoard® PREMIUM Flat Instrument Cables series cable combines our reliable flat cable design with the audiophile concept of our proven SAPPHIRE series patch cables. Designed and developed in Germany, this cable impresses with high-quality materials and convinces with a dynamic, crystal-clear and loss-free sound.

The flexible conductor core and double shielding effectively prevent high and low frequency interference and cable microphonics. This cable design ensures virtually loss-free signal routing and natural, pristine reproduction. The RockBoard PREMIUM Flat Instrument Cable is available in 6 different configurations and two lengths.

Choose a length

118.11in

236.22in

Article No.: RBO CAB FL PR 300 SA

$24.00

View in shop

Details at a glance

high-end flat instrument cable

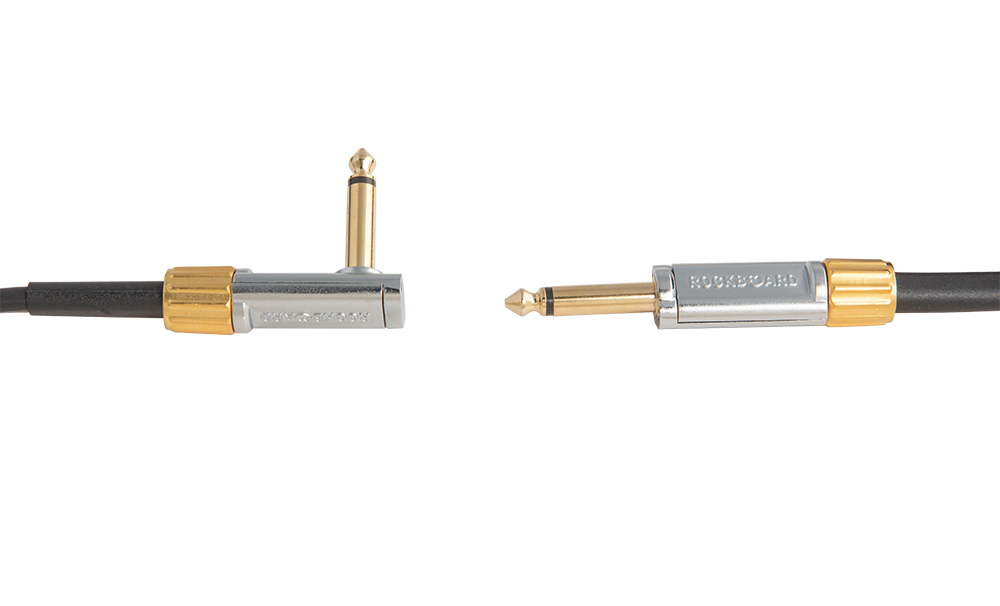

super flat gold-plated 6.3 mm mono audio plugs (straight/angled)
flat rectangular cable, prevents cable breakage and jams
100% braided tinned copper shielding 16 x 4 x 0,15 mm (34 AWG)
flexible copper conductor 50 x 0,12 mm (36 AWG)
aluminum foil shield (0,06 mm / 0.002")
signal Insulation PE (polyethylene ø 2,9 mm / 7/64")
cable mantle PVC (Polyvinylchloride)
semi-conductive layer (0,5 mm / 1/64") between signal insulation and shield, for preventing cable microphonics
capacitance conductor/shield less than 8 pF/decimeter
conductor resistance less than 8 mOhm/decimeter
operating temperature -15° C to +70° C / 5° F to 158° F
outer dimension of cable 8 x 5 mm (5/16” x 13/64”)
outer dimensions plugs straight (L x W) 80 x 16 mm (3 5/32” x 5/8”)
outer dimensions plugs angled (L x W x D) 50 x 16 x 40 mm (1 31/32” x 5/8” x 1 37/64”)
length 300 cm / 118 7/64"
black
