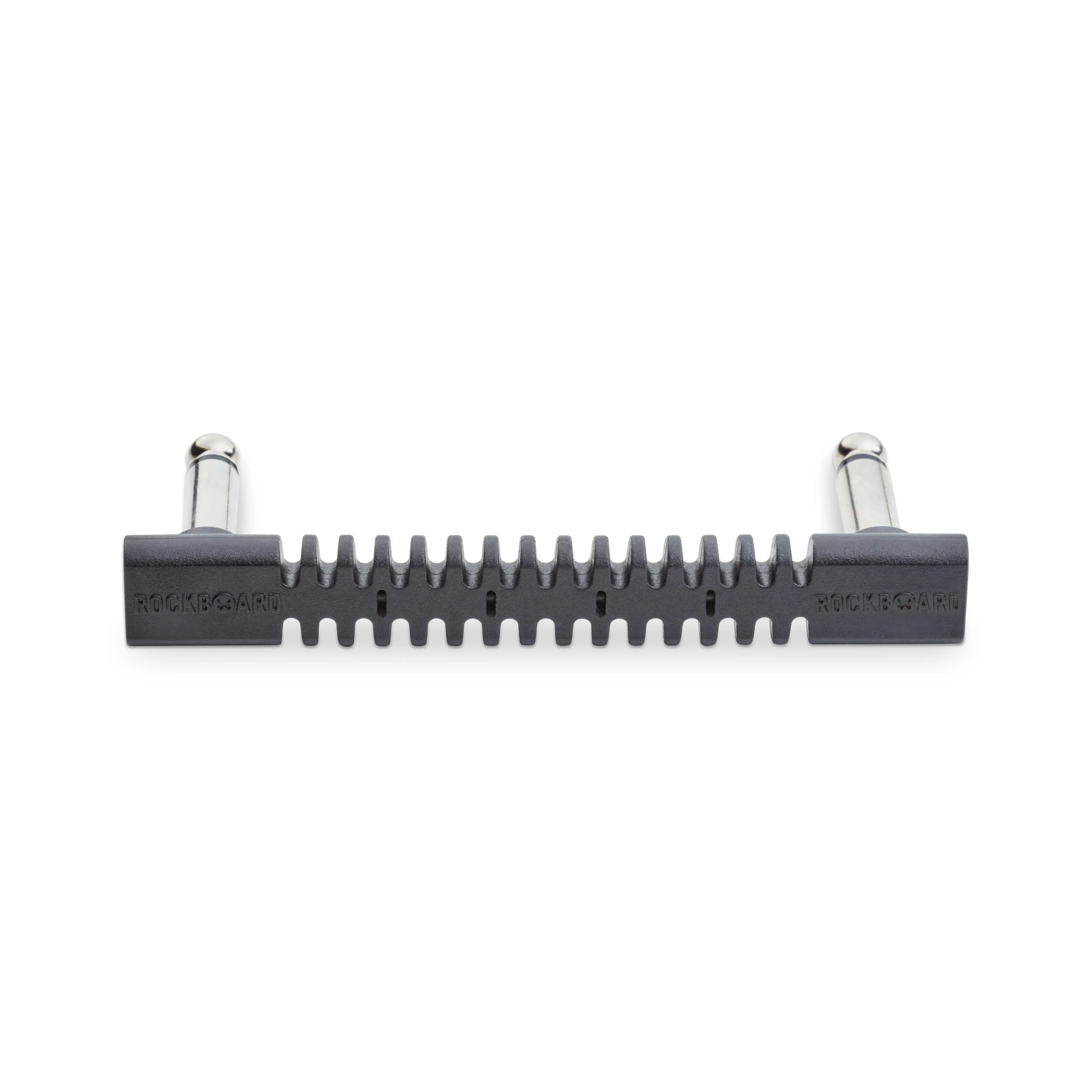

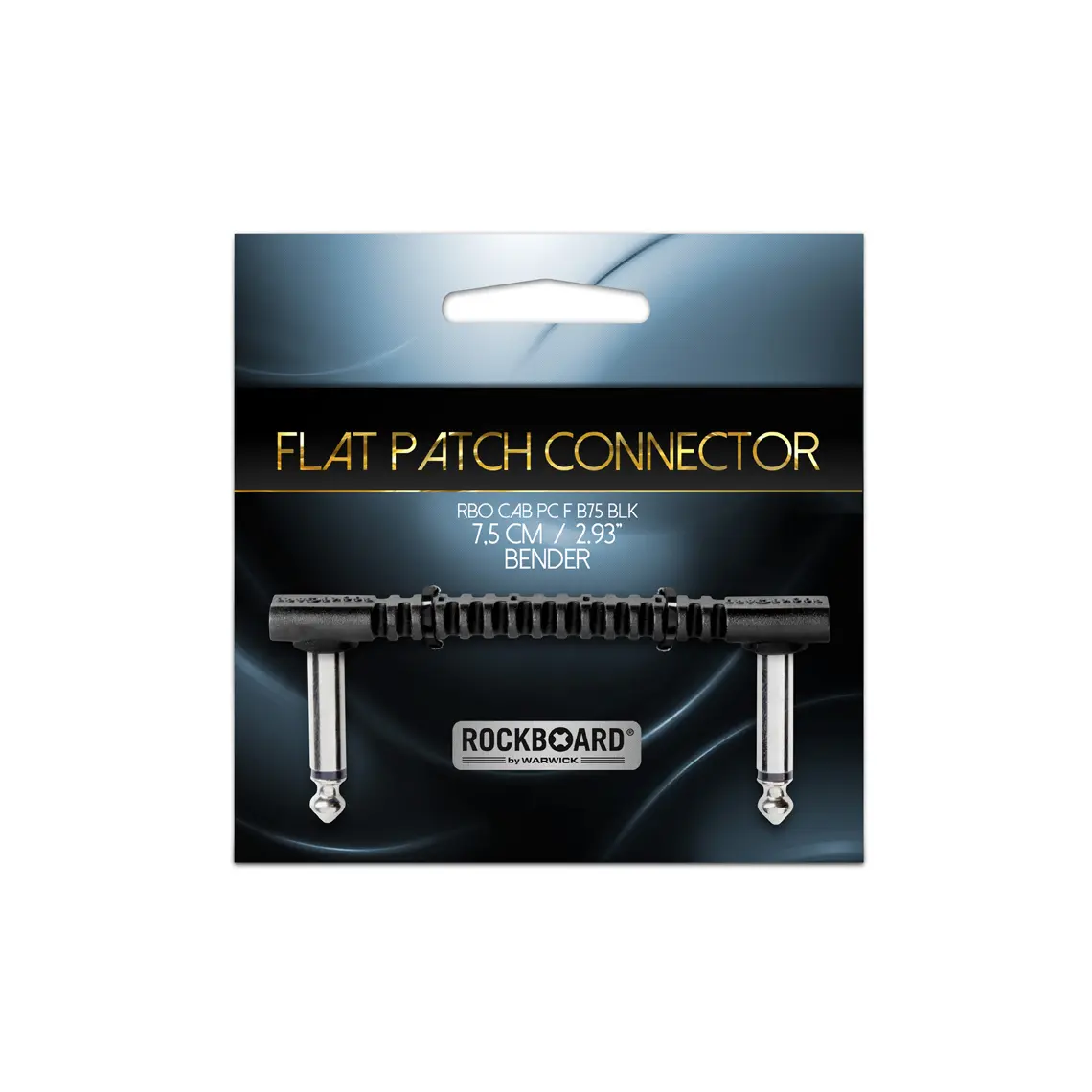

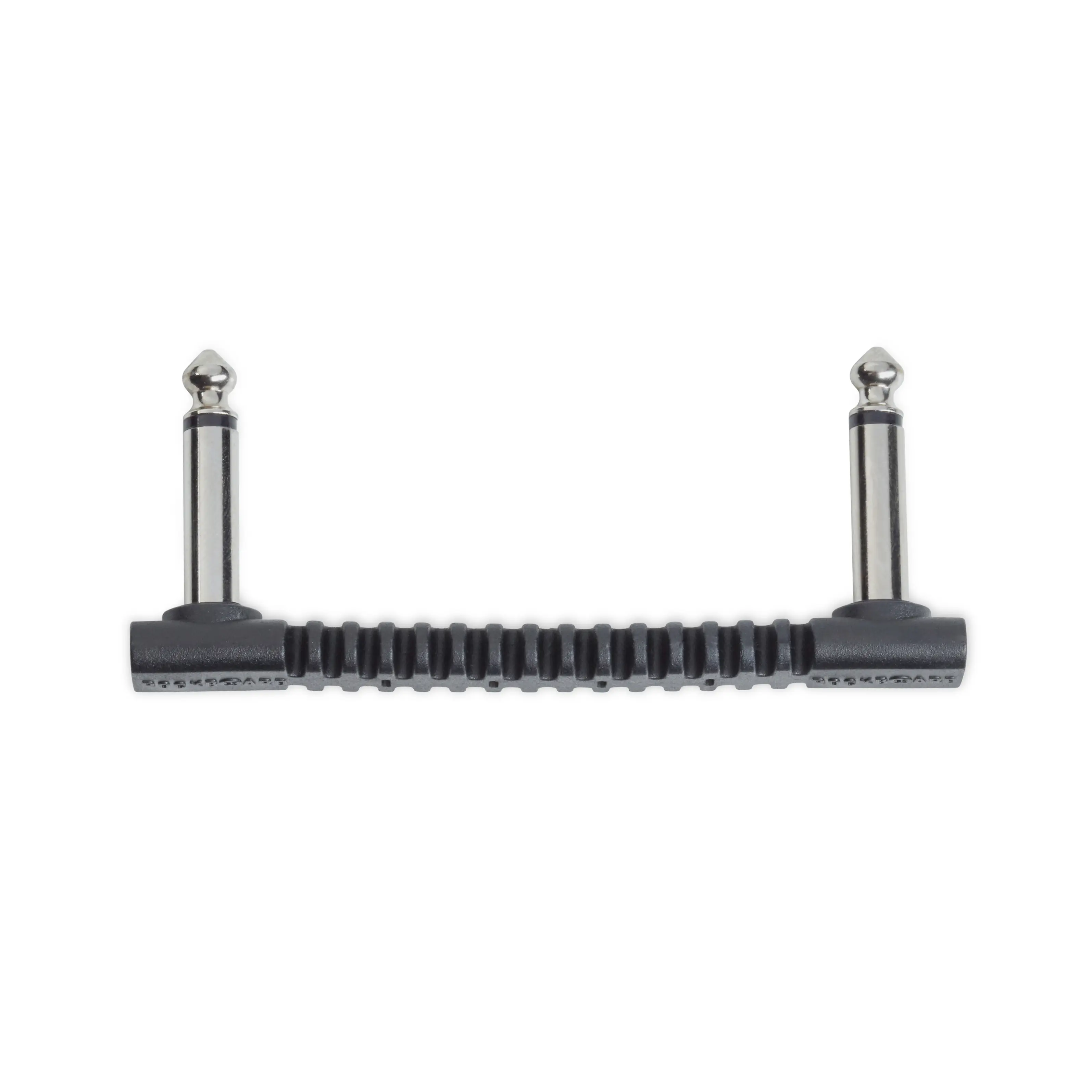

The Bender 75 is a super-flexible 75mm long patch cable with an extra low profile design. It features compact right-angle connectors to maximize pedalboard space.

Short connections with unaltered signal quality for accurate and neat wiring on the board.

Choose Variant

RockBoard Bender75 Flat Pedal Connector - 7.5 cm / 2 61/64"
RockBoard Bender75 Flat Pedal Connector, Sales Bowl (50 pcs.) - 7.5 cm / 2 61/64"

Article No.: RBO CAB PC F B75 BLK

$4.50

View in shop

Details at a glance

flexible pedal connector
easily connects top- as well as side-mounted jacks
bends in every direction
flexible copper conductor (20 x 0.12 mm / 36 AWG)
twisted copper shielding (34 x 0.12 mm / 36 AWG)
PE (polyethylene) signal insulation
PVC cable mantle
capacitance less than 10 pF/decimeter
conductor resistance less than 10 mOhm/decimeter
angled 6.3 mm mono audio plugs
operating temperature -15° C to +70° C (5° F to 158° F)
dimensions (L x W x H) 98 x 12.5 x 7.5 mm (3 55/64" x 31/64" x 19/64")
length (plug to plug) 7,5 cm / 2 61/64"
black
