QUAD 4.2 Pedalboard

For 9 - 15 pedals

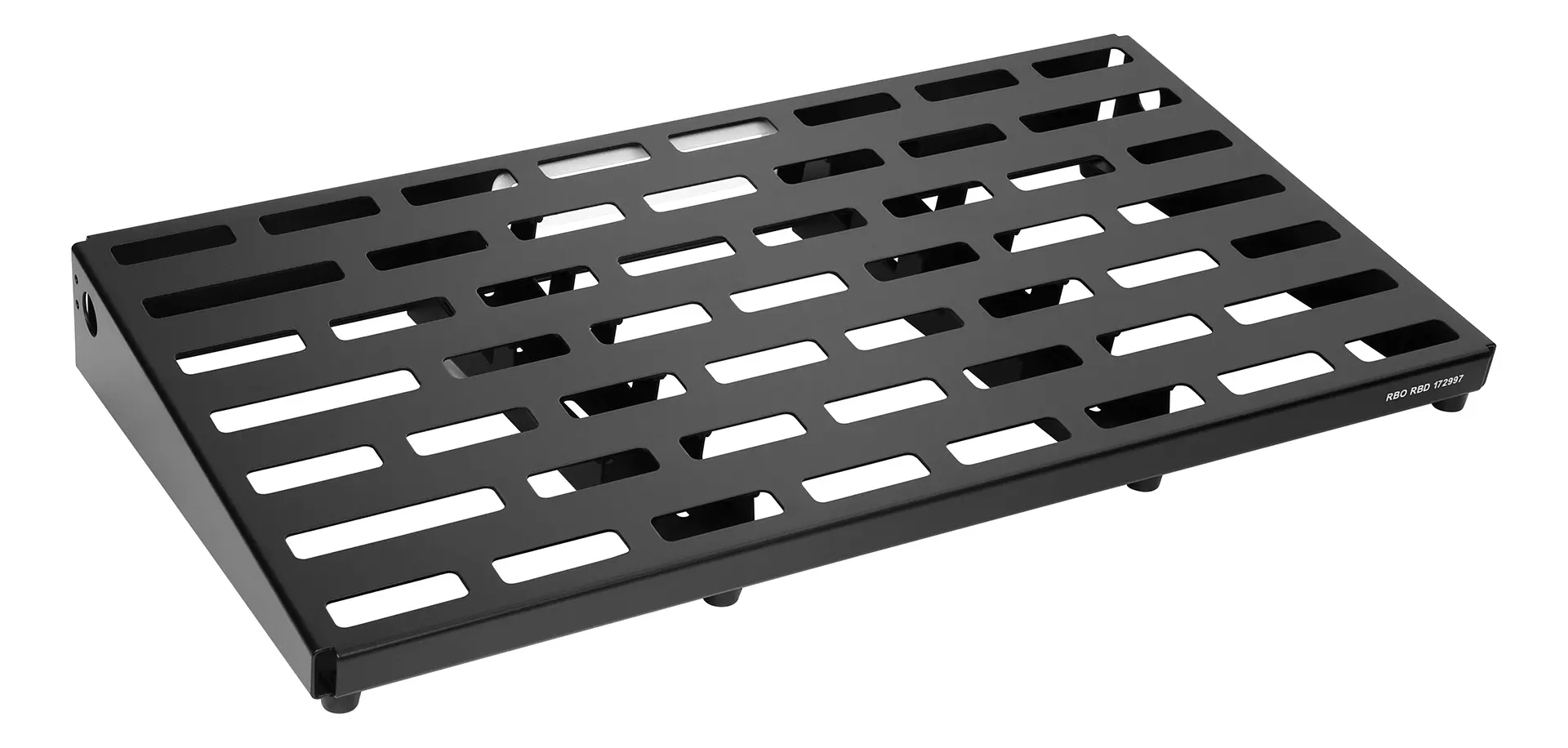

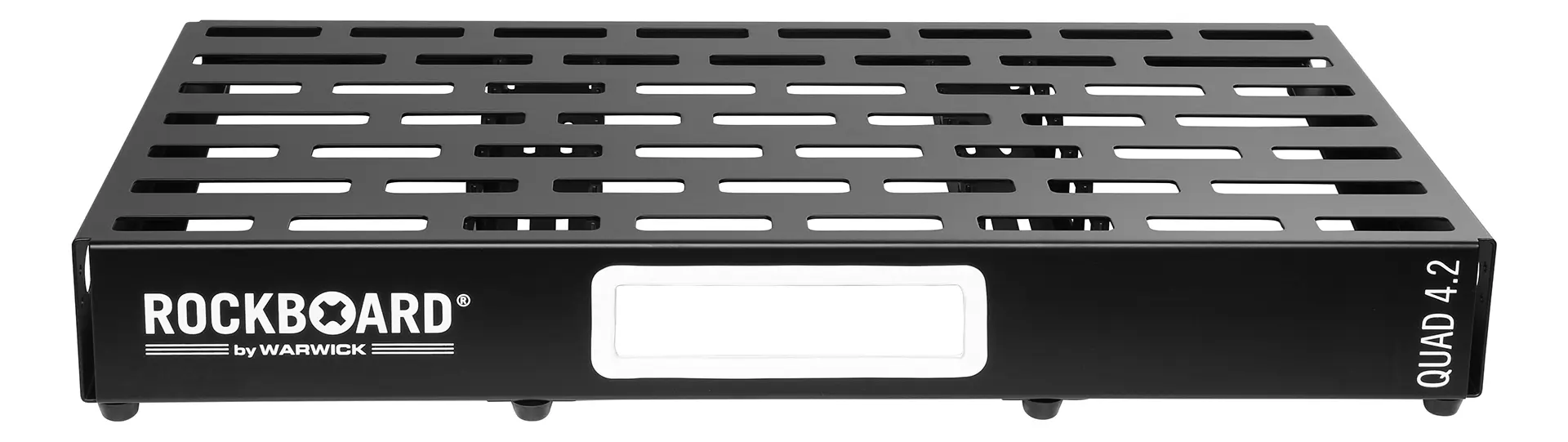

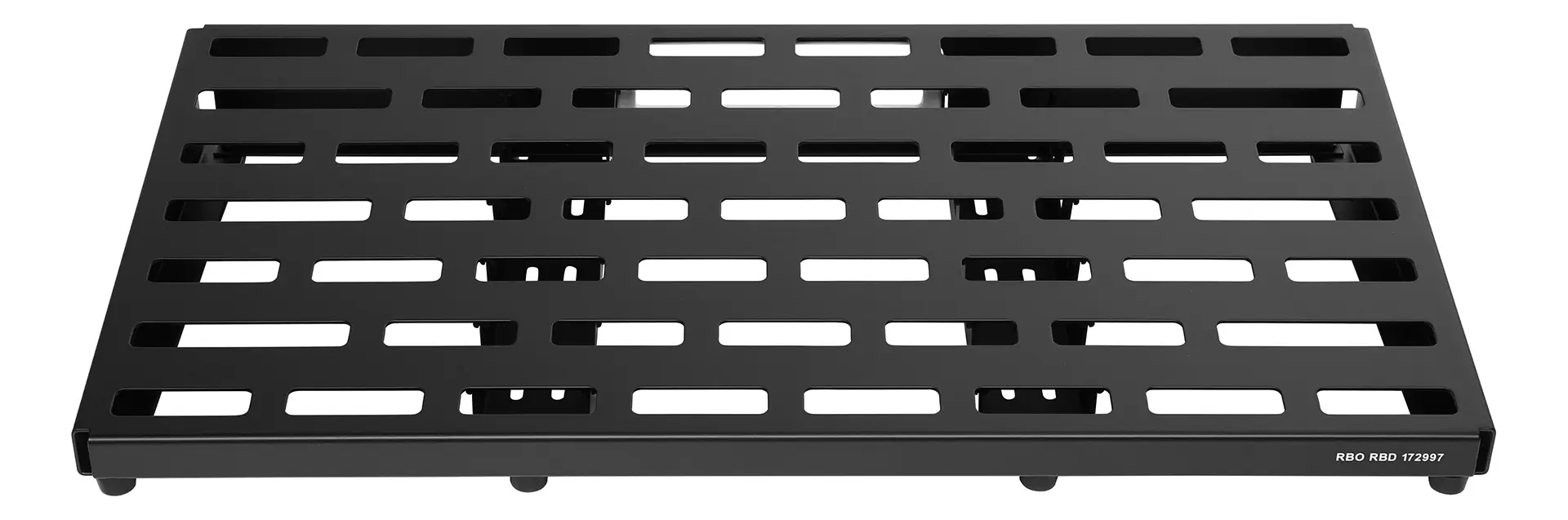

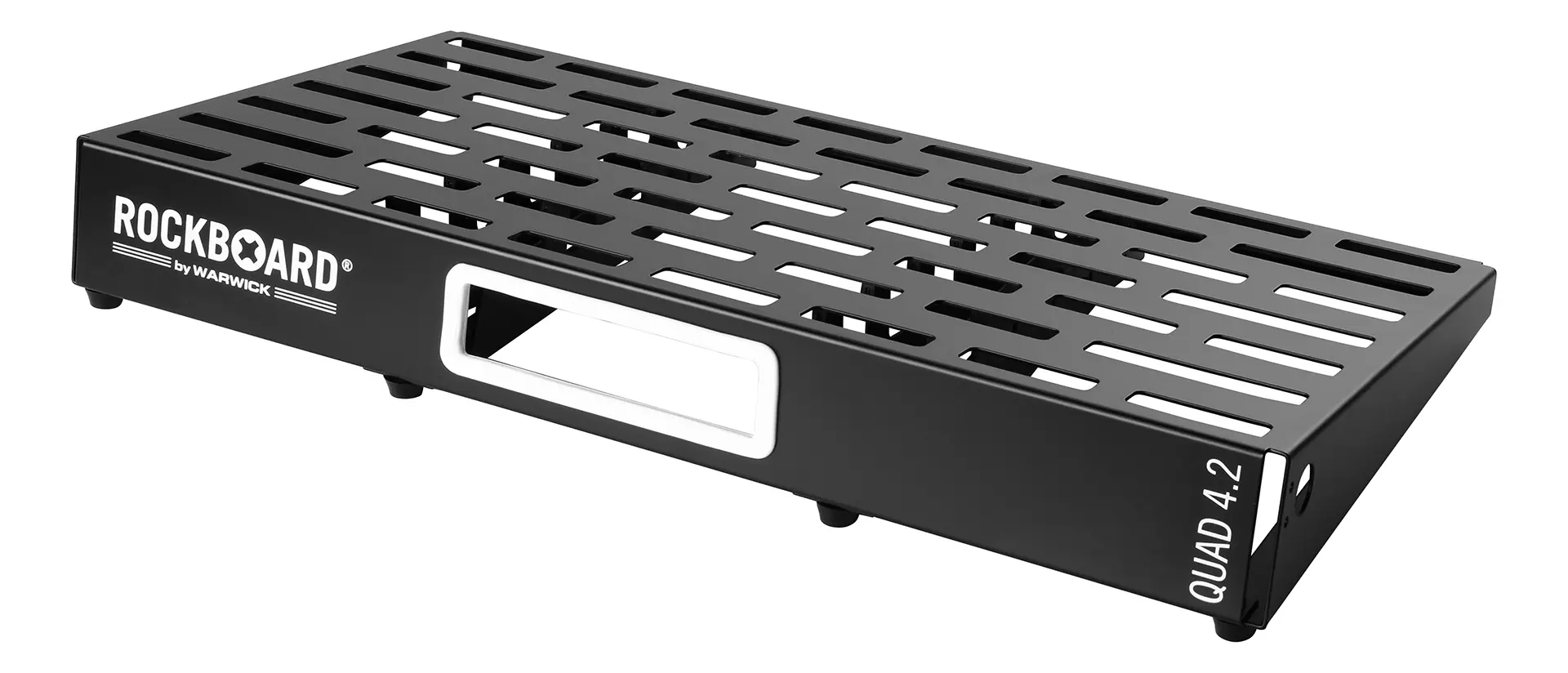

Made from a single sheet of cold-rolled aluminum, the ingenious, lightweight, stiff and rugged construction features vertical support struts for added stability and has not a single welded seam. The result is a completely flat and torsion-resistant surface that can be used edge-to-edge. The innovative slot design allows all cables to be conveniently and neatly routed under the board's surface. The precisely defined slot pattern provides a perfect fit for our innovative QuickMount system, which eliminates the need for hook & loop tape. Almost all common power supplies can be mounted on the underside. A Premium Gig Bag or sturdy Flight Case is included for safe transportation. Your choice.

Choose a case

RockBoard QUAD 4.2, Pedalboard with Gig Bag

RockBoard QUAD 4.2, Pedalboard with Flight Case

Article No.: RBO B 4.2 QUAD B

View in shop

This board easily accommodates 9 to 15 of your pedals and keeps them safe during transport.

Holds 9 - 15 pedals

No more tangled cables

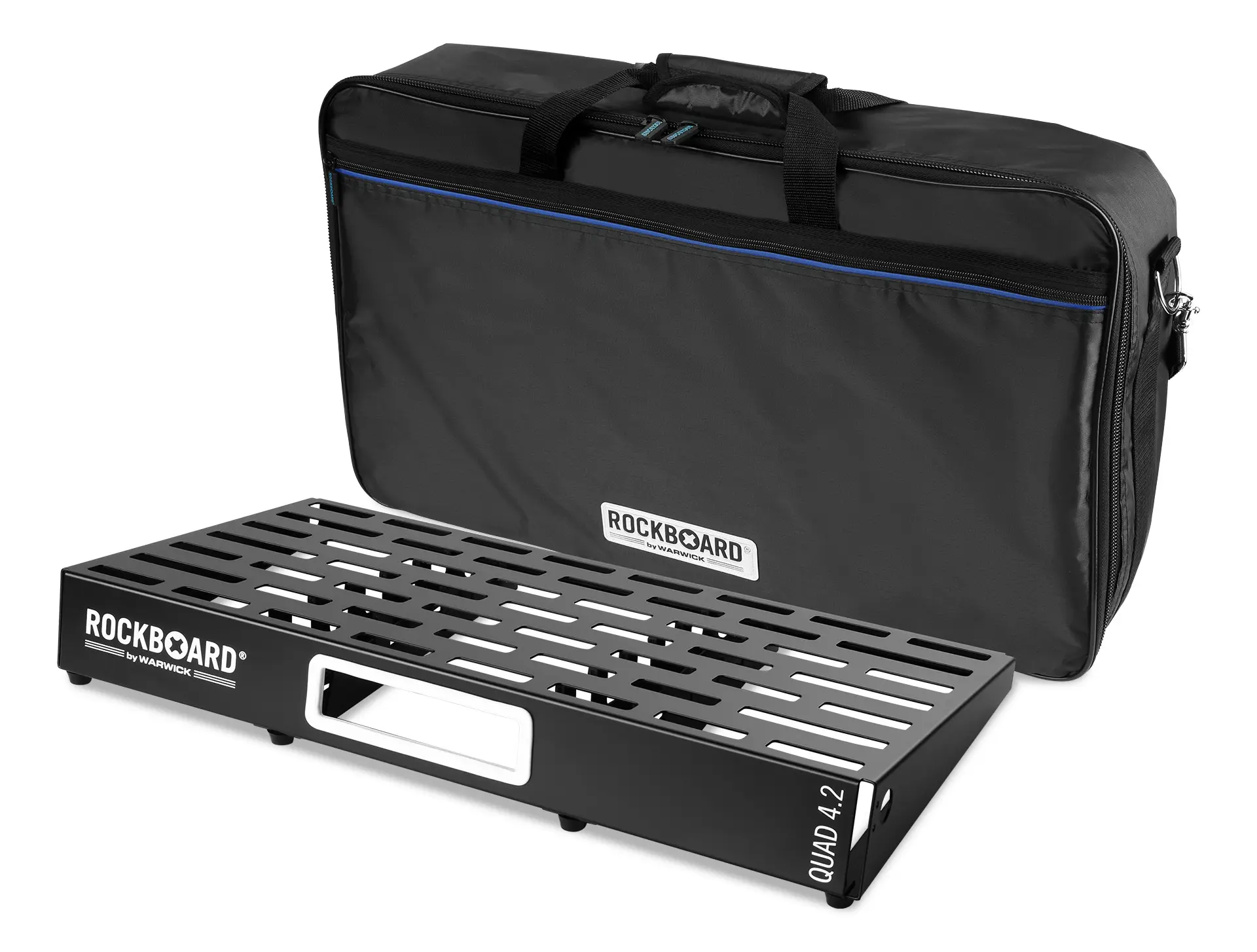

Premium Gig Bag or professional Flight Case included

Including 1 x MOD slot for our All-In-One Patchbays

Details at a glance

pedalboard for effects pedals
for approx. 9 to 15 effects pedals (depending on size)
sturdy and light aluminum construction
slotted design for easy pedal mounting
mounting holes for RockBoard LED Light (not included) on both sides
made from 1 cold-rolled aluminum sheet
additional U-shaped support braces for added rigidity
10 degrees angled and absolutely plain board surface - no weld seams
slot for RockBoard® MOD patch bays
compatible with RockBoard® The Tray - universal power supply mounting solution
robust black powder-coated surface
width 622 mm / 24 31/64"
depth 330 mm / 12 63/64"
height incl. rubber feet 37 - 71 mm / 1 7/16" - 2 13/16"
weight 2.05 kg / 4.5 lbs.
including gig bag
approx. weight bag 1,75 kg / 3.9 lbs.
interior dimensions gig bag (L x W x D) 660 x 370 x 130 mm / 26" x 14 9/16" x 5 1/8"
including self-adhesive hook (50 mm / 1 15/16" wide) & loop tape (25 mm / 1" wide) and cable ties
