Standard Flat Patch Looper/Switcher Connector Cables

Flat and space-saving

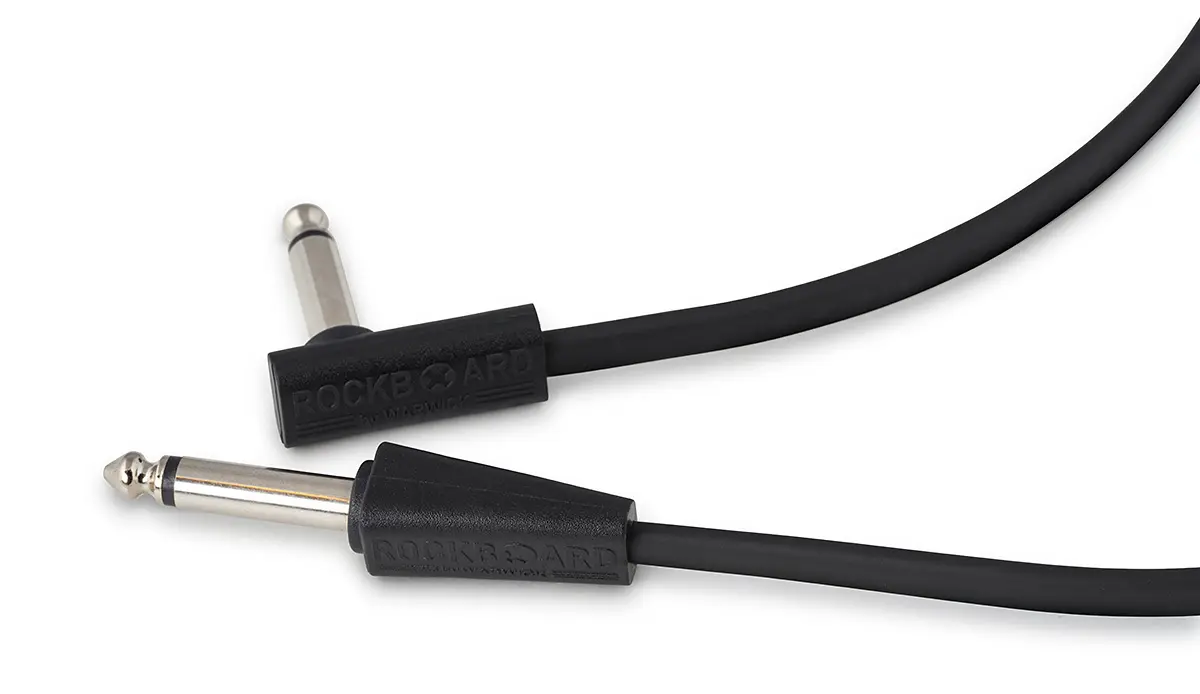

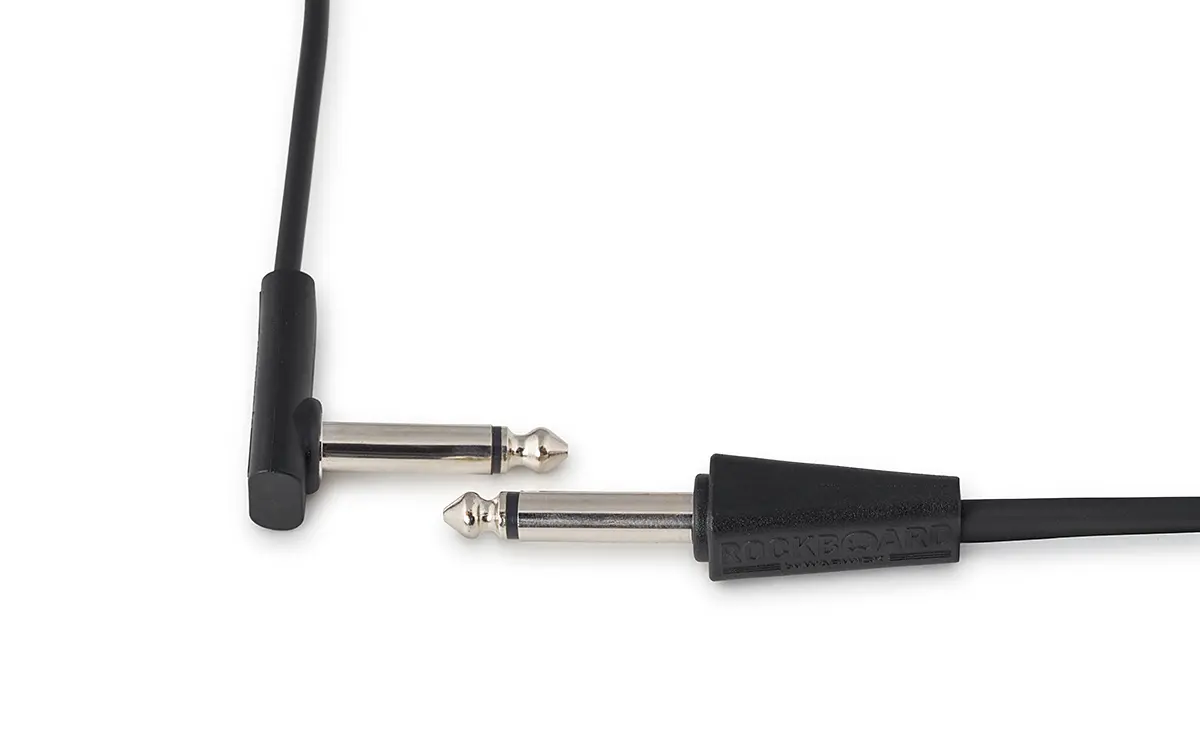

The new RockBoard patch cables were designed to be extra flat and space-saving to make the most of the available space on your pedalboard. They come with slim, angled jack plugs and the flat conductor cables effectively prevent twisting. This ensures accurate and clean wiring on the board. This version has a straight plug on one side to ensure perfect fit even in tight applications.

Choose a length

Article No.: RBO CAB PC F 20 BSA
$5.50

Details at a glance

  • flat patch cables with rectangular profile
  • compact and super flat angled/straight plugs
  • perfect for use with looper/switchers or effects pedals with tightly spaced jacks
  • flexible copper conductor (20 x 0.12 mm / 36 AWG)
  • twisted copper shielding (34 x 0.12 mm / 36 AWG)
  • PE (polyethylene) signal insulation
  • PVC cable mantle
  • capacitance less than 10 pF/decimeters
  • conductor resistance less than 10 mOhm/decimeters
  • 6.3 mm mono audio plugs
  • operating temperature -15º C to +70° C / 5° F to 158° F / 5° F to 158° F
  • outer dimensions cable (W x H) 7 x 3 mm / 1/4" x 1/8" (rectangular)
  • outer dimensions plugs (W x H) 12.5 x 7.5 mm / 1/2" x 5/16" (angled), 12.5 x 12.5 mm / 1/2" x 1/2" (straight)
  • black
  • length 20 cm / 7 7/8"
